Special Cables
Screened Multi-pair Computer (including DCS System) Cable
- Share:
1. Application
This products is used in signal transmission lines of distribution system, computer system and automatic system in power generation, metallurgical and petrochemical industry, etc. It is also used for testing equipment and apparatus.
2. Code and Description
| Code | Description |
| DJYPV | Copper conductor PE insulated PVC sheathed woven Copper wire seperate shield computer cable |
| DJYPVP | Copper core PE insulated PVC sheathed woven Copper wire seperate and general shield computer cable |
| DJYVP | Copper core PE insulated PVC sheathed woven Copper wire general shield computer cable |
| DJYP2V | Copper core PE insulated PVC sheathed Copper tape seperate shield computer cable |
| DJYP2VP2 | Copper core PE insulated PVC sheathed Copper tape seperate shield and general shield computer cable |
| DJYVP2 | Copper core PE insulated PVC sheathed Copper tape general shield computer cable |
| DJYP3V | Copper core PE insulated PVC sheathed AI/plastic compound film seperate shield computer cable |
| DJYP3VP3 | Copper core PE insulated PVC sheathed AI/plastic compound film seperate shield and general shield computer cable |
| DJYVP3 | Copper core PE insulated PVC sheathed AI/plastic compound film general shield computer cable |
| DJYPV22 | Copper core PE insulated PVC sheathed woven Copper wire seperate shield steel tape armored computer cable |
| DJYPVP22 | Cu core PE insulated PVC sheathed woven Cu wire seperate shield and general shield steel tape armored computer cable |
| DJYVP22 | Cu core PE insulated PVC sheathed woven Cu wire general shield steel tape armored computer cable |
| DJYP2V22 | Cu core PE insulated PVC sheathed Cu tape seperate shield steel tape armored computer cable |
| DJYP2VP2-22 | Cu core PE insulated PVC sheathed Cu tape seperate shield and general shield steel tape armored computer cable |
| DJYVP2-22 | Cu core PE insulated PVC sheathed Cu tape general shield steel tape armored computer cable |
| DJYP3V22 | Cu core PE insulated PVC sheathed Al/plastic compound film seperate shield steel tape armored computer cable |
| DJYP3VP3-22 | Cu core PE insulated PVC sheathed AI/plastic compound film seperate shield and general shield steel tape armored computer cable |
| DJYVP3-22 | Cu core PE insulated PVC sheathed AI/plastic compound film general shield steel tape armored computer cable |
| DJYJPV | Cu core XLPE insulated PVC sheathed woven Cu wire seperate shield computer cable |
| DJYJP2V | Cu core XLPE insulated PVC sheathed Cu tape seperate shield computer cable |
| DJYJP3V | Cu core XLPE insulated PVC sheathed AI/plastic compound film seperate shield computer cable |
| DJYJVP | Cu core XLPE insulated PVC sheathed woven Cu wire general shield computer cable |
| DJYJVP2 | Cu core XLPE insulated PVC sheathed Cu tape general shield computer cable |
| DJYJVP3 | Cu core XLPE insulated PVC sheathed AI/plaseic compound film general shield computer cable |
| DJYJPVP | Cu core XLPE insulated PVC sheathed woven Cu wire seperate and general shield computer cable |
| DJYJP2VP2 | Copper core XLPE insulated PVC sheathed Copper tape seperate tape general shield computer cable |
| DJYJP3VP3 | Copper core XLPE insulated PVC sheathed AIuminium/plastic compound film seperate and general shield computer cable |
| DJYJPV22 | Copper core XLPE insulated PVC sheathed woven Copper wire seperate shield steel tape armored computer cable |
| DJYJP2V22 | Copper core XLPE insulated PVC sheathed Copper tape seperate shield steel tape armored computer cable |
| DJYJP3V22 | Copper core XLPE insulated PVC sheathed AIuminium/plaseic compound film seperate shield steel tape armored computer cable |
| DJYJPVP-22 | Copper core XLPE insulated PVC sheathed woven Copper wure seperate and general shield steel tape armored computer cable |
| DJYJP2VP2-22 | Copper core XLPE insulated PVC sheathed Copper tape seperate and general shield steel tape armored computer cable |
| DJYJP3VP3-22 | Copper core XLPE insulated PVC sheathed AIuminium/plaseic compound film seperate and general shield steel tape armored computer cable |
| DJYJVP-22 | Copper core XLPE insulated PVC sheathed woven Copper wire general shield steel tape armored computer cable |
| DJYJVP2-22 | Copper core XLPE insulated PVC sheathed Copper tape general shield steel tape armored computer cable |
| DJYJVP3-22 | Copper core XLPE insulated PVC sheathed AIuminium/plastic compound film general shield steel tape armored computer cable |
| DJVP2V | Copper core PVC insulated PVC sheathed Copper tape seperate shield computer cable |
| DJVP3V | Copper core PVC insulated PVC sheathed AIuminium/plastic compound film seperate shield computer cable |
| DJVVP | Copper core PVC insulated PVC sheathed Copper tape general shield computer cable |
| DJVVP2 | Copper core PVC insulated PVC sheathed Copper tape general shield computer cable |
| DJVVP3 | Copper core PVC insulated PVC sheathed AIuminium/plastic compound film general shield computer cable |
| DJVPVP | Copper core PVC insulated PVC sheathed woven Copper wire seperate and general shield computer cable |
| DJVP2VP2 | Copper core PVC insulated PVC sheathed Copper tape seperate and general shield computer cable |
| DJVP3VP3 | Copper core PVC insulated PVC sheathed AIuminium/plastic compound film seperate and general shield computer cable |
| DJVPV22 | Copper core PVC insulated PVC sheathed woven Copper wire seperate shield steel tape armored computer cable |
| DJVP2V22 | Cu core PVC insulated PVC sheathed Cu tape seperate shield steel tape armored computer cable |
| DJVP3V22 | Cu core PVC insulated PVC sheathed AI/plastic compound film seperate shield steel tape armored computer cable |
| DJVVP-22 | Cu core PVC insulated PVC sheathed woven Cu wire general shield steel tape armored computer cable |
| DJVVP2-22 | Copper core PVC insulated PVC sheathed Copper tape general shield steel tape armored seperate computer cable |
| DJVVP3-22 | Copper core PVC insulated PVC sheathed AIuminium/plastic compound film general shield steel tape armored seperate computer cable |
| DJVPVP-22 | Copper core PVC insulated PVC sheathed woven Copper wire seperate and general shield steel tape armored computer cable |
| DJVP2VP2-22 | Copper core PVC insulated PVC sheathed Copper tape seperate and general shield steel tape armored computer cable |
| DJVP3VP3-22 | Copper core PVC insulated PVC sheathed AIuminium/plastic compound film seperate and general shield steel tape armored computer cable |
| ZR-DJVP2VP2-22 | Copper core PVC insulated PVC sheathed Copper tape seperate and general shield steel tape armored flame retardant computer cable |
| ZR-DJVP3VP3-22 | Copper core PVC insulated PVC sheathed AIuminium/plastic compound film seperate and general shield steel tape armored flame retardant computer cable |

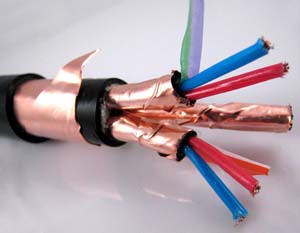

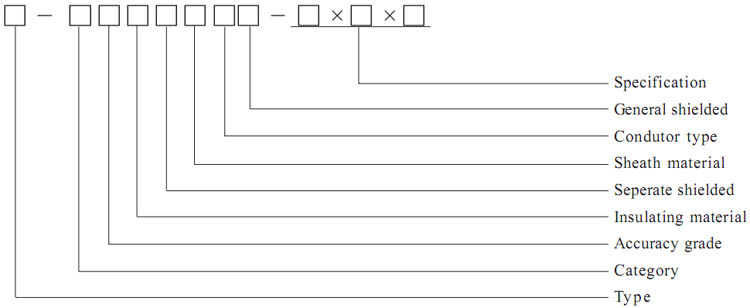

3. Code Specification
| Item | Code | Explanation |
| Flame-retardant code |
I Z ZA ZB ZC |
Non-flame-retardant to be omitted Flame-retardant A Grade A Flame-retardant B Grade B Flame-retardant C Grade C Flame-retardant |
| Series code | DJ | For computer(include DCS system)and electric appliance |
| Armor material |
Y YJ V VD E F G |
PE XLPE PVC Low-smoke Low-halogen PVC Low-smoke halogen-free polyolefin F46 F46 Insulated |
| Shield material |
P P1 P2 P3 |
Woven Cu wire Tin-plated woven Cu wire Copper tape wrapped Aluminium/plastic compound film wrapped |
| Sheath material |
Y V VD E F FV |
P E PVC Low-smoke Low-halogen PVC Low-smoke halogen-free polyolefin F46 F46 Sheathed |
| Armor material | 22 | steel tape armored |
| Conductor type |
A B R |
single-stranded conductor 7-Stranded twisted conductor muti-stranded flexible conductor |
4. Technical Performances
| Items | Unit | Technical Parameter | ||
|
|
|
F46Insulation, PE insulation, XLPE insulation | PVC insulation | |
|
Insulation resistance |
Between each pair and conductor | MΩ.Km | 5000 | 25 |
|
|
Between pair and insulation |
|
1 | 1 |
|
Working capacitance(1KHz)≤ |
3Type | pF/m | 75 | 200 |
|
|
1Type 2Type |
|
90 |
|
| Unbalanced capacitance(1KHZ) | pF/m | 1 | / | |
|
Inductance resistance≥ |
Sectional area | uH/Ω |
|
|
|
|
0.5m㎡ |
|
20 | 20 |
|
|
0.75m㎡ |
|
20 | 20 |
|
|
1.0m㎡ |
|
25 | 25 |
|
|
1.5m㎡ |
|
35 | 35 |
| Insulation control coefficient |
|
|
0.01 | 0.01 |
| Test voltage |
|
V/5min | 2000 | 2000 |
| Flame-retardant |
|
Complies with GB12666.5-90 standrads |
||
5. Guide to Use
1) Rated voltage U0/U: 300/500V
2) The Max. conductor working temperature in normal use: XLPE insulated - 90℃, PE & PVC insulation - 70℃, F46 insulation: 200℃.
3) The Min ambient temperature during installation: PVC sheath - 0℃, F46 sheath - 60℃ below 0.
4) Min. bend radius: non-armored cable - 6 times cable diameter, armored cable - 12 times cable diameter.
| Model | No. of Pairs (2 or 3 cores per pair) |
Sectional Area (mm2) |
||||||||||||||||||||||||||||
|
1-37 | 0.5,0.75,1.0,1.5 | ||||||||||||||||||||||||||||
|
4-37 |
7. Technical Particulars
1) Conductor and Insulation Specification
|
Sectional Area (mm2) |
Conductor Structure |
Max. Conductor DC Resistance at 20℃ (Ω/kM) |
Insulation Thickness (mm) |
Voltage of Spark Test (50HZ, V) |
AC Test Voltage (50Hz/5min, V) |
||
| Class | Strands/Dia. (mm) | Non-tinned | Tinned | ||||
| 0.50 | 1 | 1/0.80 | 36.0 | 36.7 | 0.60 | 6000 | 2000 |
| 0.50 | 2 | 7/0.30 | 36.0 | 36.7 | |||
| 0.50 | 3 | 16/0.20 | 39.0 | 40.1 | |||
| 0.75 | 1 | 1/0.97 | 24.5 | 24.8 | 0.60 | ||
| 0.75 | 2 | 7/0.37 | 24.5 | 24.8 | |||
| 0.75 | 3 | 24/0.20 | 26.0 | 26.7 | |||
| 1.00 | 1 | 1/1.13 | 18.1 | 18.2 | 0.70 | ||
| 1.00 | 2 | 7/0.43 | 18.1 | 18.2 | |||
| 1.00 | 3 | 32/0.20 | 19.5 | 20.0 | |||
| 1.50 | 1 | 1/1.38 | 12.1 | 12.2 | 0.70 | ||
| 1.580 | 2 | 7/0.52 | 12.1 | 12.2 | |||
| 1.50 | 3 | 30/0.25 | 13.3 | 13.7 | |||
| 2.5 | 1 | 1/1.78 | 7.41 | 7.56 | 0.70 | ||
| 2.5 | 2 | 7/0.68 | 7.41 | 7.56 | |||
| 2.5 | 3 | 49/0.26 | 7.98 | 8.21 | |||
2) DJYVP, DJYVP2, DJYVP3 Cable Size
|
Pair No. * Core No. per Pair * Sectional Area (mm) |
Conductor Strands/Dia. (mm) |
Max. Overall Dia. (mm) | Approx. Weight (kg/km) | ||||
| DJYVP | DJYVP2 | DJYVP3 | DJYVP | DJYVP2 | DJYVP3 | ||
|
1*2*0.5 1*2*0.75 1*2*1.0 1*2*1.5 |
1/0.80 1/0.97 1/1.13 1/1.38 |
7.6 8.2 8.8 9.5 |
7.3 7.8 8.5 9.2 |
9.6 10.0 10.6 11.3 |
65 71 81 100 |
47 52 61 78 |
83 90 103 124 |
|
1*2*2.5 2*2*0.5 2*2*0.75 2*2*1.0 |
1/1.78 1/0.8 1/0.97 1/1.13 |
10.5 10.5 11.2 12.6 |
10.2 10.0 10.7 12.1 |
12.3 12.5 13.2 14.6 |
132 109 134 158 |
109 84 106 129 |
164 139 165 196 |
|
2*2*1.5 2*2*2.5 3*2*0.5 3*2*0.75 3*2*1.0 |
1/1.38 1/1.78 1/0.80 1/0.97 1/1.13 |
13.8 16.2 11.0 12.2 13.7 |
13.3 15.7 10.5 11.7 13.2 |
15.8 18.2 13.0 14.2 15.7 |
244 270 132 169 196 |
211 243 105 139 165 |
284 343 163 202 236 |
|
3*2*1.5 3*2*2.5 4*2*0.5 4*2*0.75 |
1/1.38 1/1.78 1/0.8 1/0.97 |
15.0 17.2 11.8 12.7 |
14.5 16.7 11.3 12.2 |
17.0 19.2 12.8 14.7 |
249 347 165 206 |
214 308 135 173 |
303 415 199 242 |
|
4*2*1.0 4*2*1.5 4*2*2.5 5*2*0.5 |
1/1.13 1/1.38 1/1.78 1/0.80 |
14.4 15.7 18.7 13.0 |
14.0 15.0 18.2 12.5 |
16.4 17.7 20.9 15.0 |
249 310 462 194 |
206 272 400 162 |
295 370 518 233 |
|
5*2*0.75 5*2*1.0 5*2*1.5 5*2*2.5 |
1/0.97 1/1.13 1/1.38 1/1.78 |
14.0 16.0 17.5 20.9 |
13.5 15.5 17.0 20.4 |
16.0 18.0 19.5 23.0 |
247 288 384 564 |
212 250 341 496 |
299 349 449 627 |
|
7*2*0.75 7*2*0.75 7*2*1.0 7*2*1.5 |
1/0.8 1/0.97 1/1.13 1/1.38 |
13.8 15.3 17.4 19.0 |
13.3 14.8 17.0 18.5 |
15.8 17.3 19.5 21.2 |
242 310 375 512 |
207 272 333 448 |
296 368 441 566 |
|
7*2*2.5 8*2*0.5 8*2*0.75 8*2*1.0 |
1/1.78 1/0.80 1/0.97 1/1.13 |
22.7 15.3 16.8 19.2 |
22.2 14.8 16.3 18.7 |
25.0 17.3 18.8 21.5 |
728 277 367 455 |
654 240 325 382 |
798 336 429 499 |
|
8*2*1.5 8*2*2.5 10*2*0.5 10*2*0.75 |
1/1.38 1/1.78 1/0.80 1/0.97 |
20.4 24.5 18.2 20.0 |
20.0 24.0 17.7 19.5 |
22.6 26.8 20.2 22.0 |
592 850 382 486 |
520 770 319 417 |
649 950 430 538 |
|
10*2*1.0 10*2*1.5 10*2*2.5 12*2*0.5 |
1/1.13 1/1.38 1/1.78 1/0.80 |
22.8 24.7 28.8 18.8 |
22.3 24.2 28.3 18.3 |
25.0 27.0 31.2 21.0 |
579 752 1155 425 |
504 668 1000 360 |
640 817 1210 474 |
|
12*2*0.75 12*2*1.0 12*2*1.5 12*2*2.5 |
1/0.97 1/1.13 1/1.38 1/1.78 |
20.0 23.5 25.4 30.7 |
20.2 23.0 26.0 30.0 |
22.8 25.8 27.6 32.8 |
545 652 850 1305 |
472 574 765 1150 |
597 715 920 1367 |
|
14*2*0.5 14*2*0.75 14*2*1.0 14*2*1.5 |
1/0.80 1/0.97 1/1.13 1/1.38 |
19.5 21.5 24.6 26.7 |
19.0 21.0 24.1 26.2 |
21.7 23.7 26.8 29.0 |
475 622 736 1030 |
407 545 655 883 |
528 677 804 1070 |
|
14*2*2.5 16*2*0.5 16*2*0.75 16*2*1.0 |
1/1.78 1/0.80 1/0.97 1/1.13 |
32.5 21.0 23.0 26.0 |
32.0 20.5 22.5 25.5 |
35.0 23.0 25.0 28.4 |
1480 538 694 823 |
1315 466 613 738 |
1544 594 752 919 |
|
16*2*1.5 16*2*2.5 19*2*0.5 19*2*0.75 |
1/1.38 1/1.78 1/0.80 1/0.97 |
28.5 34.5 22.4 23.7 |
28.0 34.0 22.0 23.2 |
31.0 37.0 24.4 25.7 |
1165 1675 610 790 |
1010 1500 535 706 |
1209 1743 669 854 |
|
19*2*1.0 19*2*1.5 19*2*2.5 24*2*0.5 |
1/1.13 1/1.38 1/1.78 1/0.80 |
27.0 29.6 36.0 25.5 |
26.5 29.1 35.5 25.0 |
29.4 32.0 38.5 27.7 |
854 1350 1925 780 |
863 1185 1740 692 |
1056 1396 1998 876 |
|
24*2*0.75 24*2*1.0 24*2*1.5 24*2*2.5 |
1/0.97 1/1.13 1/1.38 1/1.78 |
28.2 32.5 35.2 42.5 |
27.8 32.0 34.7 42.0 |
30.7 34.8 37.6 45.0 |
1100 1320 1720 2465 |
940 1150 1910 2250 |
1141 1378 2159 2555 |
3) DJYPVP, DJYP2VP2, DJYP3VP3 Cable Size
|
Pair No. * Core No. per Pair * Sectional Area (mm) |
Conductor Strands/Dia. (mm) |
Max. Overall Dia. (mm) | Approx. Weight (kg/km) | ||||
| DJYPVP | DJYP2VP2 | DJYP3VP3 | DJYPVP | DJYP2VP2 | DJYP3VP3 | ||
|
1*2*0.5 1*2*0.75 1*2*1.0 1*2*1.5 |
1/0.80 1/0.97 1/1.13 1/1.38 |
8.0 8.6 9.0 9.8 |
7.4 8.2 8.6 9.4 |
10.0 10.6 11.0 11.8 |
75 88 98 119 |
47 58 66 83 |
83 96 108 129 |
|
1*2*2.5 2*2*0.5 2*2*0.75 2*2*1.0 |
1/1.78 1/0.80 1/0.97 1/1.13 |
10.8 15.6 16.4 18.1 |
10.4 14.9 16.8 17.5 |
12.8 17.3 18.0 19.4 |
154 179 211 240 |
114 121 150 172 |
169 204 239 284 |
|
2*2*1.5 2*2*2.5 3*2*0.5 3*2*0.75 |
1/1.38 1/1.78 1/0.80 1/0.97 |
20.0 22.0 16.8 17.8 |
18.8 20.8 15.5 16.3 |
21.2 23.8 18.1 19.0 |
296 400 218 265 |
220 303 153 192 |
342 449 246 305 |
|
3*2*1.0 3*2*1.5 3*2*2.5 4*2*0.5 |
1/1.13 1/1.38 1/1.78 1/0.80 |
19.5 21.5 24.1 18.2 |
18.3 19.8 22.5 16.9 |
20.7 22.8 25.5 19.5 |
300 374 520 267 |
223 285 436 191 |
349 422 602 311 |
|
4*2*0.75 4*2*1.0 4*2*1.5 4*2*2.5 |
1/0.97 1/1.13 1/1.38 1/1.78 |
19.6 21.0 23.7 26.0 |
18.4 20.2 22.3 24.7 |
20.8 22.4 25.1 27.5 |
325 372 504 675 |
240 280 372 522 |
370 426 528 712 |
|
5*2*0.5 5*2*0.75 5*2*1.0 5*2*1.5 |
1/0.80 1/0.97 1/1.13 1/1.38 |
20.1 21.2 23.0 25.7 |
18.8 19.9 21.8 24.1 |
21.6 22.6 24.6 27.1 |
319 402 486 606 |
232 292 352 545 |
368 440 517 633 |
|
5*2*2.5 7*2*0.5 7*2*0.75 7*2*1.0 |
1/1.78 1/0.80 1/0.97 1/1.13 |
28.8 22.6 23.6 25.8 |
27.1 20.5 21.7 24.3 |
30.1 24.0 25.0 27.2 |
822 414 538 617 |
628 298 389 456 |
844 456 562 650 |
|
7*2*1.5 7*2*2.5 |
1/1.38 1/1.78 |
28.8 31.8 |
26.6 30.1 |
30.1 33.1 |
784 1065 |
592 855 |
802 1111 |
|
8*2*0.5 8*2*0.75 8*2*1.0 8*2*1.5 |
1/0.80 1/0.97 1/1.13 1/1.38 |
24.0 25.5 27.7 30.4 |
22.0 23.5 25.9 28.9 |
25.1 26.6 28.8 31.5 |
503 620 719 902 |
355 453 532 699 |
529 643 745 932 |
|
8*2*2.5 10*2*0.5 10*2*0.75 10*2*1.0 |
1/1.78 1/1.80 1/0.97 1/1.13 |
34.2 28.4 30.7 33.0 |
32.3 26.4 28.4 31.1 |
35.3 29.4 31.7 34.0 |
1256 645 740 908 |
997 455 585 689 |
1309 662 809 943 |
|
10*2*1.5 10*2*2.5 12*2*0.5 12*2*0.75 |
1/1.38 1/1.78 1/0.80 1/0.97 |
36.2 41.0 29.4 30.8 |
34.2 38.4 26.8 29.1 |
37.2 42.0 31.4 32.8 |
1160 1599 697 889 |
907 1286 517 665 |
1212 1622 741 909 |
|
12*2*1.0 12*2*1.5 12*2*2.5 14*2*0.5 |
1/1.13 1/1.38 1/1.78 1/0.80 |
34.1 38.0 42.1 30.2 |
32.4 35.2 40.1 28.8 |
36.1 40.1 44.3 31.5 |
1042 1422 1923 812 |
784 1038 1481 594 |
1088 1368 1882 841 |
|
14*2*0.75 14*2*1.0 14*2*1.5 14*2*2.5 |
1/0.97 1/1.13 1/1.38 1/1.78 |
31.8 35.4 38.1 43.5 |
30.3 33.4 36.3 41.9 |
33.0 36.6 40.5 44.9 |
1021 1257 1599 2177 |
758 894 1180 1711 |
1027 1226 1540 2150 |
|
16*2*0.5 16*2*0.75 16*2*1.0 16*2*1.5 |
1/0.80 1/0.97 1/1.13 1/1.38 |
31.7 33.4 37.2 40.0 |
30.2 31.9 35.2 38.3 |
33.2 34.9 38.6 41.5 |
908 1162 1410 1787 |
671 856 1027 1333 |
1020 1267 1468 1839 |
|
16*2*2.5 19*2*0.5 19*2*0.75 19*2*1.0 |
1/1.78 1/0.80 1/0.97 1/1.13 |
46.3 33.3 35.2 39.2 |
44.6 31.8 33.4 37.0 |
47.7 34.8 36.6 40.6 |
2442 1051 1392 1622 |
1935 773 1004 1186 |
2555 1152 1465 1684 |
4) DJYPVP, DJYP2VP2, DJYP3VP3 Cable Size
|
Pair No. * Core No. per Pair * Sectional Area (mm) |
Conductor Strands/Dia. (mm) |
Max. Overall Dia. (mm) | Approx. Weight (kg/km) | ||||
| DJYPVRP | DJYP2VRP2 | DJYP3VRP3 | DJYPVRP | DJYP2VRP2 | DJYP3VRP3 | ||
|
1*2*0.5 1*2*0.75 1*2*1.0 1*2*1.5 |
16/0.20 24/0.20 32/0.20 30/0.25 |
8.2 8.8 9.5 10.4 |
7.6 8.2 8.7 9.8 |
10.2 10.8 11.5 12.4 |
75 90 98 120 |
47 58 66 85 |
84 103 114 142 |
|
1*2*2.5 2*2*0.5 2*2*0.75 2*2*1.0 |
49/0.25 16/0.20 24/0.20 32/0.20 |
11.2 16.3 17.0 19.0 |
10.6 15.3 16.3 18.0 |
13.2 18.0 18.6 20.6 |
154 179 217 241 |
114 121 154 172 |
185 216 270 298 |
|
2*2*1.5 2*2*2.5 3*2*0.5 3*2*0.75 |
30/0.25 49/0.25 16/0.20 24/0.20 |
20.6 23.0 17.2 18.3 |
19.5 22.0 15.8 17.1 |
22.0 24.5 18.8 19.8 |
300 400 218 271 |
225 303 153 197 |
376 491 265 337 |
|
3*2*1.0 3*2*1.5 3*2*2.5 4*2*0.5 |
32/0.20 30/0.25 49/0.25 16/0.20 |
19.8 21.8 24.9 18.7 |
18.5 20.5 23.5 17.4 |
21.2 23.3 26.3 20.4 |
300 378 520 268 |
223 290 437 191 |
375 473 685 326 |
|
4*2*0.75 4*2*1.0 4*2*1.5 4*2*2.5 |
24/0.20 32/0.20 30/0.25 49/0.25 |
20.2 21.5 24.4 27.0 |
18.6 20.2 22.9 25.7 |
22.0 23.3 26.0 28.5 |
334 373 512 674 |
246 280 404 522 |
416 468 651 815 |
|
5*2*0.5 5*2*0.75 5*2*1.0 5*2*1.5 |
16/0.20 24/0.20 32/0.20 30/0.25 |
20.8 21.8 23.8 26.4 |
19.4 20.4 22.4 24.8 |
22.4 23.3 25.3 27.9 |
319 413 486 617 |
232 300 351 464 |
395 522 570 718 |
|
5*2*2.5 7*2*0.5 7*2*0.75 7*2*1.0 |
49/0.25 16/0.20 24/0.20 32/0.20 |
29.8 22.6 23.6 26.6 |
28.3 21.2 22.3 26.6 |
31.3 24.2 25.2 27.8 |
822 415 550 617 |
639 299 400 456 |
946 500 652 726 |
|
7*2*1.5 7*2*2.5 |
30/0.25 49/0.25 |
29.3 33.4 |
29.3 33.4 |
30.5 34.6 |
797 1065 |
722 855 |
1036 1240 |
|
8*2*0.5 8*2*0.75 |
16/0.20 24/0.20 |
22.9 24.7 |
25.7 26.8 |
24.5 25.7 |
505 633 |
356 465 |
587 748 |
|
8*2*1.0 8*2*1.5 |
32/0.20 30/0.25 |
27.1 30.1 |
29.9 33.1 |
28.8 31.9 |
505 633 |
532 714 |
835 1071 |
|
8*2*2.5 10*2*0.5 |
49/0.26 16/0.20 |
34.3 27.4 |
37.1 30.4 |
35.9 29.4 |
1256 645 |
987 455 |
1436 737 |
|
10*2*0.75 10*2*1.0 |
24/0.20 32/0.20 |
29.6 32.6 |
31.8 35.4 |
30.7 34.4 |
808 908 |
602 689 |
956 1060 |
|
10*2*1.5 10*2*2.5 |
30/0.25 49/0.26 |
35.5 40.5 |
39.0 44.4 |
38.0 43.4 |
1266 1599 |
926 1286 |
1361 1814 |
|
12*2*0.5 12*2*0.75 |
16/0.20 24/0.20 |
28.1 29.4 |
31.2 33.0 |
30.1 31.0 |
721 838 |
517 683 |
821 1058 |
|
12*2*1.0 12*2*1.5 |
32/0.20 30/0.25 |
32.9 36.7 |
36.2 39.7 |
35.2 38.5 |
1042 1428 |
785 1059 |
1185 1536 |
|
12*2*2.5 14*2*0.5 |
49/0.26 16/0.20 |
42.0 29.8 |
45.5 32.8 |
44.0 31.8 |
1923 811 |
1480 595 |
2043 927 |
|
14*2*0.75 14*2*1.0 |
24/0.20 32/0.20 |
31.8 34.4 |
34.3 37.4 |
33.4 36.5 |
1044 1256 |
778 894 |
1183 1323 |
|
14*2*1.5 14*2*2.5 |
30/0.25 49/0.26 |
38.1 44.4 |
41.2 47.9 |
40.2 46.5 |
1634 2177 |
1209 1711 |
1718 2327 |
|
16*2*0.5 16*2*0.75 |
16/0.20 24/0.20 |
29.8 33.0 |
34.3 36.5 |
33.4 35.6 |
908 1256 |
671 879 |
1020 1301 |
|
16*2*1.0 16*2*1.5 |
32/0.20 30/0.25 |
37.6 40.3 |
39.9 43.9 |
38.9 43.0 |
1410 1823 |
1026 1363 |
1479 1880 |
|
16*2*2.5 19*2*0.5 |
49/0.26 16/0.20 |
46.7 33.0 |
50.5 36.8 |
49.0 35.2 |
2442 1050 |
1935 771 |
2555 1149 |
|
19*2*0.75 19*2*1.0 |
24/0.20 32/0.20 |
34.8 38.8 |
38.0 41.8 |
37.1 41.0 |
1421 1628 |
1031 1185 |
1505 1684 |
|
19*2*1.5 19*2*2.5 |
30/0.25 49/0.26 |
45.3 51.8 |
46.3 53.3 |
45.3 51.8 |
2083 2808 |
1599 2247 |
2190 2922 |
-
Compensation cable
-
Heat-resistant Fire-proof Cable
-
Silicone Rubber Insulated Power Cable
-
Silicone Rubber Insulated Control Cable
-
Heat-Resistant Flat Cable
-
Teflon lnsulated Power Cable
-
Teflon Insulated Heat-resistant Control Cable
-
High temperature control cable
-
Heat-Resistant & Cold-Resistant Flat Cable
