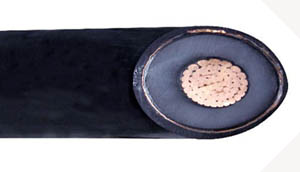

XLPE Insulated Power Cable of Rated Voltage 35kV and below

PRODUCTS

Electric Wire & Cable and Accessories: Rubber Sheathed Cable for General Purposes; Rubber Insulated Cables Used in Open Countr; Flame-retardant Rubber Sheathed Cables for Mining Purposes; PVC Insulated Cable for House Wiring; XLPE Insulated Power Cable; PVC Insulated Power Cable; Low-smoke Halogen-free Flame-retardant and Fire-resistant Cables; Control Cables; Overhead Conductors and Cables; Aluminum wire and ACSR; Special Cables; Elevator Cable

Distribution Box

HOTLINE

0577-57157777

XLPE Insulated Power Cable

Home

Products

Electric Wire & Cable and Accessories

1. Standard

IEC 60502

2. Application

This Product is used in power transmission lines of rated voltage 35kV and below.

Next0.6/1kV XLPE Insulated Power Cable

3. Code and Description

Code	Description
YJ(L)V	Copper/Aluminium conductor XLPE insulated PVC sheathed power cable
YJ(L)V22	Copper/Aluminium conductor XLPE insulated steel tape armored PVC sheathed power cable
YJ(L)V32,42	Copper/Aluminium conductor XLPE insulated steel wire armored PVC sheathed power cable

4. Technical Particulars
1) 6/6, 6/10kV YJ(L)V

No. of Cores x Sectional Area (mm2)	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Dia. (mm)	Approx. Weight (kg/km)		Conductor Resistance at 20℃ (Ω/km)		Testing Voltage	Current Carrying Capacity
				Approx. Weight (kg/km)		Conductor Resistance at 20℃ (Ω/km)		Testing Voltage	In Air (A)		In Soil (A)
				Cu	Al	Cu	Al	kv/5min	Cu	Al	Cu	Al
1×25	3.4	1.8	20	598	443	≤0.727	≤1.20	21	190	145	210	160
1×35	3.4	1.8	22	719	502	≤0.524	≤0.868	21	230	180	250	195
1×50	3.4	1.9	23	884	575	≤0.387	≤0.641	21	275	215	300	230
1×70	3.4	1.9	24	1097	664	≤0.268	≤0.443	21	345	265	370	285
1×95	3.4	2.0	26	1378	790	≤0.193	≤0.320	21	415	325	445	345
1×120	3.4	2.0	28	1658	916	≤0.153	≤0.253	21	480	375	505	395
1×150	3.4	2.1	30	1967	1038	≤0.124	≤0.206	21	550	425	575	445
1×185	3.4	2.1	31	2335	1190	≤0.0991	≤0.164	21	635	490	650	500
1×240	3.4	2.2	34	2908	1423	≤0.0754	≤0.125	21	745	580	760	590
1×300	3.4	2.4	36	3507	1650	≤0.0601	≤0.100	21	860	665	870	670
1×400	3.4	2.4	39	4503	2027	≤0.0470	≤0.0778	21	1010	785	1000	780
1×500	3.4	2.5	42	5479	2384	≤0.0366	≤0.0600	21	1180	910	1150	895
1×630	3.4	2.5	48	6952	3046	≤0.0283	≤0.0469	21	1330	1060	1280	1016
1×800	3.4	2.7	52	7120	3575	≤0.0221	≤0.0367	21	1530	1230	1430	1160
1×1000	3.4	2.9	57	10500	4300	≤0.0176	≤0.0291	21	1720	1410	1595	1300
1×1200	3.4	3.0	61	12426	4986	≤0.0151	≤0.0247	21	1870	1540	1695	1410
3×25	3.4	2.8	42	895	1430	≤0.727	≤1.20	21	145	110	140	110
3×35	3.4	2.9	44	2293	1640	≤0.524	≤0.868	21	175	130	170	130
3×50	3.4	2.9	46	2812	1881	≤0.387	≤0.641	21	205	160	200	155
3×70	3.4	2.9	50	3508	2205	≤0.268	≤0.443	21	255	195	245	155
3×95	3.4	3.3	54	4402	2653	≤0.193	≤0.320	21	310	235	290	190
3×120	3.4	3.3	58	5319	3087	≤0.153	≤0.253	21	350	275	330	225
3×150	3.4	3.6	62	6309	3518	≤0.124	≤0.206	21	400	310	370	225
3×185	3.4	3.6	65	7319	3877	≤0.0991	≤0.164	21	455	355	420	325
3×240	3.4	3.6	71	9218	4753	≤0.0754	≤0.125	21	530	415	480	380
3×300	3.4	3.8	75	11159	5577	≤0.0601	≤0.1005	21	605	475	545	430
3×400	3.4	3.9	84	15107	7547	≤0.0470	≤0.0778	21	705	555	625	485
3×500	3.4	4.0	91.8	17383	8227	≤0.0366	≤0.0605	21

2) 6/6, 6/10kV YJ(L)V

No. of Cores x Sectional Area (mm2)	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Dia. (mm)	Approx. Weight (kg/km)		Conductor Resistance at 20℃ (Ω/km)		Testing Voltage	Current Carrying Capacity
				Approx. Weight (kg/km)		Conductor Resistance at 20℃ (Ω/km)		Testing Voltage	In Air (A)		In Soil (A)
				Cu	Al	Cu	Al	kv/5min	Cu	Al	Cu	Al
1×25	4.5	2.0	23	680	525	≤0.727	≤1.20	30.5	190	145	210	160
1×35	4.5	2.0	24	804	587	≤0.524	≤0.868	30.5	230	180	250	195
1×50	4.5	2.0	25	984	674	≤0.387	≤0.641	30.5	275	215	300	230
1×70	4.5	2.0	27	1201	768	≤0.268	≤0.443	30.5	345	265	370	285
1×95	4.5	2.0	29	1490	902	≤0.193	≤0.320	30.5	415	325	445	345
1×120	4.5	2.0	30	1765	1022	≤0.153	≤0.253	30.5	480	375	505	395
1×150	4.5	2.0	32	2091	1162	≤0.124	≤0.206	30.5	550	425	575	445
1×185	4.5	2.0	34	2452	1307	≤0.0991	≤0.164	30.5	635	490	650	500
1×240	4.5	2.0	36	3034	1548	≤0.0754	≤0.125	30.5	745	580	760	590
1×300	4.5	2.0	39	3672	1815	≤0.0601	≤0.100	30.5	860	665	870	670
1×400	4.5	2.5	42	4646	2170	≤0.0470	≤0.0778	30.5	1010	785	1000	780
1×500	4.5	2.5	45	5651	2556	≤0.0366	≤0.0600	30.5	1180	910	1150	895
1×630	4.5	2.5	50	7154	3248	≤0.0283	≤0.0469	30.5	1330	1060	1280	1016
1×800	4.5	2.6	55	8750	3790	≤0.0221	≤0.0367	30.5	1530	1230	1430	1160
1×1000	4.5	2.8	59	10727	4527	≤0.0176	≤0.0291	30.5	1720	1410	1595	1300
1×1200	4.5	3.0	63	12642	5202	≤0.0151	≤0.0247	30.5	1870	1540	1695	1410
3×25	4.5	2.8	50	2573	2072	≤0.727	≤1.20	30.5	145	110	140	110
3×35	4.5	2.9	53	2985	2334	≤0.524	≤0.868	30.5	175	130	170	130
3×50	4.5	2.5	55	3529	2598	≤0.387	≤0.641	30.5	205	160	200	155
3×70	4.5	2.5	58	4197	2895	≤0.268	≤0.443	30.5	255	195	245	155
3×95	4.5	3.0	63	5230	3462	≤0.193	≤0.320	30.5	310	235	290	190
3×120	4.5	3.0	66	6120	3888	≤0.153	≤0.253	30.5	350	275	330	225
3×150	4.5	3.0	70	7207	4416	≤0.124	≤0.206	30.5	400	310	370	225
3×185	4.5	3.0	74	8378	4935	≤0.0991	≤0.164	30.5	455	355	420	325
3×240	4.5	3.5	79	10177	5712	≤0.0754	≤0.125	30.5	530	415	480	380
3×300	4.5	3.5	84	12159	6577	≤0.0601	≤0.1005	30.5	605	475	545	430
3×400	4.5	3.7	89	15641	8081	≤0.0470	≤0.0778	30.5	705	555	625	485
3×500	4.5	4.0	93.2	18128	8964	≤0.0366	≤0.0605	30.5

3) 12/20kV YJ(L)V

No. of Cores x Sectional Area (mm2)	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Dia. (mm)	Approx. Weight (kg/km)		Conductor Resistance at 20℃ (Ω/km)		Testing Voltage	Current Carrying Capacity
				Approx. Weight (kg/km)		Conductor Resistance at 20℃ (Ω/km)			In Air (A)		In Soil (A)
				Cu	AL	Cu(≤)	AL(≤)		Cu	AL	Cu	AL
1×35	0.50	2.00	27	979	762	0.524	0.868	42	230	180	250	190
1×50	0.50	2.00	29	1155	846	0.387	0.641	42	275	215	295	225
1×70	0.50	2.00	30	1393	959	0.268	0.443	42	340	265	360	280
1×95	0.50	2.00	32	1681	1093	0.193	0.320	42	415	325	440	340
1×120	0.50	2.00	34	1979	1236	0.153	0.253	42	480	370	495	385
1×150	0.50	2.00	35	2301	1373	0.124	0.206	42	550	420	560	435
1×185	0.50	2.00	38	2718	1573	0.0991	0.164	42	630	485	640	495
1×240	0.50	2.50	40	3302	1817	0.0754	0.125	42	745	575	750	580
1×300	0.50	2.50	43	3941	2084	0.0601	0.100	42	860	660	855	660
1×400	0.50	2.50	45	3931	2455	0.0407	0.0778	42	1000	775	980	765
1×500	0.50	2.50	48	5956	2861	0.0336	0.0605	42	1160	890	114	885
1×630	0.50	2.60	49	769	3863	0.0283	0.0469	42	1330	1060	1280	1010
1×800	0.50	2.80	57	8945	3958	0.0221	0.0367	42	1530	1230	1460	1160
1×1000	0.50	2.90	61	10918	4718	0.0176	0.0291	42	1720	1410	1595	1300
1×1200	0.50	3.10	65	12900	5460	0.0151	0.0247	42	1876	1510	1695	1410
3×35	0.50	3.00	57	3348	2696	0.524	0.868	42	175	130	170	130
3×50	0.50	3.00	60	3904	2973	0.387	0.641	42	205	160	200	155
3×70	0.50	3.00	63	4623	3321	0.0268	0.443	42	255	195	240	190
3×95	0.50	3.50	67	5593	3825	0.193	00.320	42	310	240	290	225
3×120	0.50	3.50	71	6495	4262	0.153	0.253	42	350	275	330	285
3×150	0.50	3.50	74	7637	4846	0.124	0.206	42	400	310	370	325
3×185	0.50	3.50	78	8803	5361	0.0991	0.164	42	455	355	415	380
3×240	0.50	3.50	84	10729	6263	0.0754	0.125	42	535	420	480	430
3×300	0.50	4.00	89	12723	7141	0.0601	0.100	42	610	475	545	490
3×400	0.50	4.10	96	16207	8647	0.0470	0.0778	42	705	555	625	485

4) 21/35kV YJ(L)V

No. of Cores x Sectional Area (mm2)	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Dia. (mm)	Approx. Weight (kg/km)		Conductor Resistance at 20℃ (Ω/km)		Testing Voltage	Current Carrying Capacity
				Approx. Weight (kg/km)		Conductor Resistance at 20℃ (Ω/km)		Testing Voltage	In Air (A)		In Soil (A)
				Cu	Al	Cu	Al	kv/5min	Cu	Al	Cu	Al
1×50	9.3	2.0	37	1609	1360	0.387	0.641	73.5	275	210	285	220
1×70	9.3	2.5	38	1850	1417	0.268	0.443	73.5	340	265	350	270
1×95	9.3	2.5	40	2193	1605	0.193	0.320	73.5	415	320	420	325
1×120	9.3	2.5	42	2498	1756	0.153	0.253	73.5	480	370	480	370
1×150	9.3	2.5	44	2830	1910	0.124	0.206	73.5	550	420	540	420
1×185	9.3	2.5	45	3248	2102	0.0991	0.164	73.5	630	480	620	480
1×240	9.3	2.5	48	3881	2395	0.0754	0.125	73.5	745	565	725	560
1×300	9.3	3.0	50	4529	2672	0.0601	0.100	73.5	860	650	830	640
1×400	9.3	3.0	53	5570	3094	0.0470	0.0778	73.5	1000	780	970	760
1×500	9.3	3.0	55	6690	3595	0.0366	0.0605	73.5	1160	915	1130	875
1×630	9.3	3.1	60	8099	4193	0.0283	0.0469	73.5	1330	1030	1260	990
1×800	9.3	3.1	65	9752	4792	0.0221	0.0367	73.5	1530	1180	1430	1140
1×1000	9.3	3.2	70	11781	5581	0.0176	0.0291	73.5	1720	1350	1570	1280
1×1200	9.3	3.3	74	13784	6344	0.0151	0.0247	73.5	1876	1500	1720	1390

5) 26/35kV YJ(L)V

No. of Cores x Sectional Area (mm2)	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Dia. (mm)	Approx. Weight (kg/km)		Conductor Resistance at 20℃ (Ω/km)		Testing Voltage	Current Carrying Capacity
				Approx. Weight (kg/km)		Conductor Resistance at 20℃ (Ω/km)		Testing Voltage	In Air (A)		In Soil (A)
				Cu	Al	Cu	Al	kv/5min	Cu	Al	Cu	Al
1×50	10.5	2.2	39	1758	1449	0.387	0.641	91	275	210	285	220
1×70	10.5	2.4	41	2038	1604	0.268	0.443	91	340	265	350	270
1×95	10.5	2.4	43	2355	1767	0.193	0.320	91	415	320	420	325
1×120	10.5	2.4	44	2666	1923	0.153	0.253	91	475	370	480	370
1×150	10.5	2.5	46	3031	2103	0.124	0.206	91	540	420	540	420
1×185	10.5	2.5	48	3427	2282	0.0991	0.164	91	620	480	620	480
1×240	10.5	2.6	50	4070	2584	0.0754	0.125	91	735	565	725	560
1×300	10.5	2.7	53	4748	2891	0.0601	0.100	91	840	650	830	640
1×400	10.5	2.8	56	5801	3325	0.0470	0.0778	91	995	780	970	760
1×500	10.5	2.9	59	6623	4076	0.0366	0.0605	91	1160	915	1130	875
1×630	10.5	3.0	63	8211	4305	0.0283	0.0469	91	1290	1030	1260	990
1×800	10.5	3.1	68	10014	5054	0.0221	0.0367	91	1480	1180	1430	1140
1×1000	10.5	3.3	72	12078	5878	0.0176	0.0291	91	1660	1350	1570	1280
1×1200	10.5	3.4	76	14100	6657	0.0151	0.0247	91	1810	1500	1720	1390
3×50	10.5	3.4	81	6728	5778	0.387	0.641	91	189	152	168	144
3×70	10.5	3.5	84	7581	6232	0.268	0.443	91	244	189	223	177
3×95	10.5	3.6	88	8630	6824	0.193	0.320	91	295	225	270	200
3×120	10.5	3.8	93	9688	7406	0.153	0.253	91	331	258	307	237
3×150	10.5	3.9	96	11017	8165	0.124	0.206	91	377	290	344	265
3×185	10.5	4.0	100	12390	8904	0.0991	0.164	91	400	310	385	295
3×240	10.5	4.1	105	14427	9863	0.0754	0.125	91	470	365	445	345
3×300	10.5	4.4	108	15940	10270	0.0601	0.100	91	545	425	505	390
3×400	10.5	4.5	116	19346	11786	0.0470	0.0778	91	635	490	575	450
3×500	10.5	4.9	122	22452	13288	0.0366	0.0605	91

6) 6/6, 6/10kV YJ(L)V22

No. of Cores x Sectional Area (mm2)	Insulation Thickness (mm)	Inner Sheath Thickness (mm)	Steel Tape No. * Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	Approx. Weight (kg/km)		Conductor DC Resistance at 20℃ (Ω/km)		Testing Voltag (kV/5min)	Current Carrying Capacity
						Approx. Weight (kg/km)		Conductor DC Resistance at 20℃ (Ω/km)			In Air (A)		In Soil (A)
						Cu	7AL	Cu(≤ )	AL(≤)		Cu	AL	Cu	AL
3*25	3.4	1.6	2*0.5	2.6	47	3010	2554	0.727	1.20	21	140	110	140	110
3*35	3.4	1.6	2*0.5	2.8	50	3498	2847	0.524	0.868	21	170	135	165	130
3*50	3.4	1.8	2*0.5	2.8	53	4135	3205	0.387	0.641	21	200	155	195	150
3*70	3.4	1.8	2*0.5	3.1	56	4958	3655	0.268	0.443	21	250	190	240	185
3*95	3.4	2.0	2*0.5	3.1	61	5974	4206	0.193	0.320	21	305	235	290	225
3*120	3.4	2.0	2*0.5	3.2	64	6969	4736	0.153	0.253	21	350	270	330	255
3*150	3.4	2.0	2*0.5	3.6	69	8161	5370	0.124	0.206	21	395	305	365	285
3*185	3.4	2.2	2*0.5	3.6	72	9417	5975	0.0991	0.164	21	450	350	415	320
3*240	3.4	2.2	2*0.5	3.6	78	11340	6874	0.0754	0.125	21	525	410	480	375
3*300	3.4	2.2	2*0.8	3.8	84	14247	8665	0.0601	0.100	21	595	470	540	425
3*400	3.4	2.2	2*0.8	3.9	90	17510	9948	0.0470	0.0778	21	705	555	625	485
3*500	3.4	2.3	2*0.8	4.1	96	20987	11828	0.0366	0.0605	21

7) 8.7/10kV, 8.7/15kV YJ(L)V22

No. of Cores x Sectional Area (mm2)	Insulation Thickness (mm)	Inner Sheath Thickness (mm)	Steel Tape No. * Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	Approx. Weight (kg/km)		Conductor DC Resistance at 20℃ (Ω/km)		Testing Voltag (kV/5min)	Current Carrying Capacity
						Approx. Weight (kg/km)		Conductor DC Resistance at 20℃ (Ω/km)			In Air (A)		In Soil (A)
						Cu	AL	Cu(≤ )	AL(≤)		Cu	AL	Cu	AL
3*25	4.5	1.6	2*0.5	2.9	53	3500	3035	0.727	1.20	30.5	140	110	140	110
3*35	4.5	1.6	2*0.5	2.9	55	3980	3329	0.524	0.868	30.5	170	135	165	130
3*50	4.5	1.8	2*0.5	3.1	58	4679	3748	0.387	0.641	30.5	200	155	195	150
3*70	4.5	1.8	2*0.5	3.1	61	5410	4107	0.268	0.443	30.5	250	190	240	185
3*95	4.5	2.0	2*0.5	3.4	66	6567	4799	0.193	0.320	30.5	305	235	290	225
3*120	4.5	2.0	2*0.5	3.4	70	7541	5308	0.153	0.253	30.5	350	270	330	255
3*150	4.5	2.0	2*0.5	3.6	73	8674	5883	0.124	0.206	30.5	395	305	365	285
3*185	4.5	2.2	2*0.5	3.6	77	9991	6549	0.0991	0.164	30.5	450	350	415	320
3*240	4.5	2.2	2*0.5	4.0	84	11887	8421	0.0754	0.125	30.5	525	410	480	375
3*300	4.5	2.2	2*0.8	4.0	89	14974	9392	0.0601	0.100	30.5	595	470	540	425
3*400	4.5	2.2	2*0.8	4.1	96	18230	10670	0.0470	0.0778	30.5	705	555	625	485
3*500	4.5	2.3	2*0.8	4.2	102	21797	12633	0.0366	0.0605	30.5

8) 12/20kV YJ(L)V22

No. of Cores x Sectional Area (mm2)	Insulation Thickness (mm)	Inner Sheath Thickness (mm)	Steel Tape No. * Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	Approx. Weight (kg/km)		Conductor DC Resistance at 20℃ (Ω/km)		Testing Voltage (kV/5min)	Current Carrying Capacity
No. of Cores x Sectional Area (mm2)	Insulation Thickness (mm)	Inner Sheath Thickness (mm)	Steel Tape No. * Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	CU	AL	Cu	AL	Testing Voltage (kV/5min)	Cu (In Air)	A1 (In Air)	CU (In Soil)	AL (In Soil)
3*35	5.5	1.8	2*0.5	3.2	63	4840	4189	≤0.524	≤0.868	42	175	135	165	130
3*50	5.5	1.8	2*0.5	3.2	69	5463	4532	≤0.387	≤0.641	42	205	160	195	150
3*70	5.5	2.0	2*0.5	3.3	69	6346	5044	≤0.268	≤0.443	42	255	200	240	185
3*95	5.5	2.0	2*0.5	3.6	74	7457	5689	≤0.193	≤0.320	42	310	240	290	225
3*120	5.5	2.0	2*0.5	3.6	77	7459	6227	≤0.153	≤0.253	42	350	275	330	255
3*150	5.5	2.2	2*0.5	3.8	82	10555	7764	≤0.124	≤0.206	42	395	310	365	285
3*185	5.5	2.2	2*0.8	4.0	86	11925	8483	≤0.0991	≤0.164	42	450	355	415	320
3*240	5.5	2.2	2*0.8	4.0	92	13959	9494	≤0.0754	≤0.125	42	525	415	430	375
3*300	5.5	2.2	2*0.8	4.2	97	16314	10731	≤0.0601	≤0.100	42	595	470	540	420
3*400	5.5	2.3	2*0.8	4.3	103	19032	11458	≤0.0470	≤0.0778	42	1010	785	1000	780
3*500	5.5	2.4	2*0.8	4.4	104	22660	13490	≤0.0366	≤0.0605	42

9) 26/35kV YJ(L)V22

No. of Cores x Sectional Area (mm2)	Insulation Thickness (mm)	Inner Sheath Thickness (mm)	Steel Tape No. * Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	Approx. Weight (kg/km)		Conductor DC Resistance at 20℃ (Ω/km)		Testing Voltage (kV/5min)	Current Carrying Capacity
No. of Cores x Sectional Area (mm2)	Insulation Thickness (mm)	Inner Sheath Thickness (mm)	Steel Tape No. * Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	CU	AL	CU	AL	Testing Voltage (kV/5min)	Cu (In Air)	AL (In Air)	CU (In Soil)	AL (In Soil)
3*50	10.5	2.0	0.8	3.7	87	9975	9025	0.387	0.641	91	193	152	181	140
3*70	10.5	2.0	0.8	3.8	90	10927	9567	0.268	0.443	91	239	189	223	172
3*95	10.5	2.1	0.8	3.9	95	12190	10384	0.193	0.320	91	290	225	270	209
3*120	10.5	2.2	0.8	4.0	99	13451	11169	0.153	0.253	91	331	258	307	237
3*150	10.5	2.2	0.8	4.1	100	14907	12055	0.124	0.206	91	373	290	339	265
3*185	10.5	2.3	0.8	4.2	106	16501	12947	0.0991	0.164	91	400	310	385	295
3*240	10.5	2.4	0.8	4.4	112	18826	14262	0.0754	0.125	91	470	365	445	345
3*300	10.5	2.6	0.8	4.5	115	19114	13444	0.0601	0.100	91	545	425	505	390
3*400	10.5	2.6	0.8	4.5	123	22818	15258	0.0470	0.0778	91	635	490	575
3*500	10.5	2.8	0.8	5.0	131	27506	18342	0.0366	0.0605	91

5. Technical Performance
1) Bend radius:
Single core cable: 20(d+D)±5%, and multi-core cable: 15(d+D)±5%, where D=overall diameter of finished cable (mm) and d=diameter of conductor (mm)
2) The cable shall be pre-heated before laying if the ambient temperature is below 0℃.
3) The laying of the cable is not restricted by the level difference.

6. Correction Coefficient of Current Carrying Capacity under Different Temperatures

Working temperature（℃）	Air temperature
	15	10	15	20	25	30	35	40	45	50
	1.30	1.26	1.22	1.18	1.44	1.09	1.04	1.0	0.94	0.89
	Soil temperature
	5	10	15	20	25	30	35
	1.44	1.11	1.07	1.04	1.00	0.96	0.92

Other Products

0.6/1kV XLPE Insulated Power Cable
