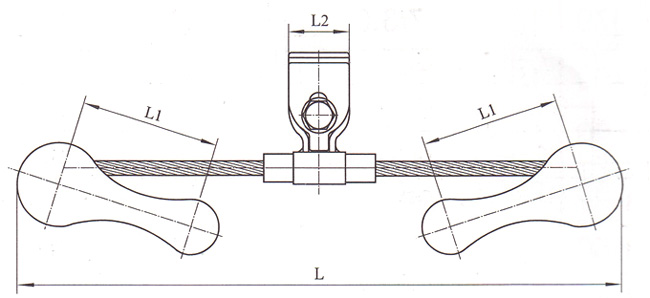

型号 Catalog No. |
适用导线范围 Applicable Conductor |
L | L1 | L2 |
重量 Weight(kg) |
| DB05B07SS | 7.50-12.00 | 420 | 80 | 35 | 1.3 |
| DB05B12SS | 12.10-15.00 | 420 | 80 | 40 | 1.3 |
| DB05B15SS | 15.10-18.00 | 420 | 80 | 40 | 1.3 |
| DB05B18SS | 18.10-21.00 | 420 | 80 | 45 | 1.3 |
| DB1B21SS | 21.10-24.00 | 456 | 97 | 45 | 2.5 |
| DB1B24SS | 24.10-27.00 | 480 | 110 | 50 | 4.6 |
线夹为铝合金件，重锤为灰铸铁件，浸漆；如用户需要，重锤可热镀锌
