型号 Catalog No. |

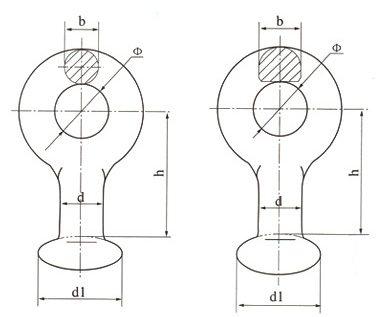

主要尺寸Dimensions(mm) |
连接标记 Designated size of coupling |
标称破坏载荷 Rated Failing load (kN) |
重量 Weight (kg) |
||||
| d | Φ | b | d1 | h | ||||
| Q-7 | 17 | 22 | 16 | 33.3 | 50 | 16 | 70 | 0.3 |
| QP-7 | 17 | 18 | 16 | 33.3 | 50 | 16 | 70 | 0.3 |
| QP-10 | 17 | 18 | 16 | 33.3 | 50 | 16 | 100 | 0.3 |
| QP-12 | 17 | 24 | 20 | 41.0 | 60 | 20 | 120 | 0.5 |
| QP-12G | 17 | 24 | 17 | 33.3 | 60 | 16 | 120 | 0.4 |
| QP-16 | 21 | 26 | 20 | 41.0 | 60 | 20 | 160 | 0.5 |
| QP-16G | 21 | 26 | 18 | 41.0 | 60 | 20 | 160 | 0.5 |
| QP-20 | 25 | 30 | 24 | 49.0 | 80 | 24 | 200 | 1.0 |
| QP-21D | 21 | 30 | 24 | 41.0 | 70 | 20 | 210 | 0.9 |
| QP-30 | 25 | 39 | 28 | 49.0 | 80 | 24 | 300 | 1.1 |
| QP-2120G | 21 | 26 | 20 | 41.0 | 80 | 20 | 210 | 0.7 |
| QP-3224G | 25 | 33 | 28 | 49.0 | 80 | 24 | 320 | 1.2 |
| QP-4228G | 29 | 39 | 32 | 57.0 | 100 | 28 | 420 | 1.5 |
热镀锌钢制件。
