型号 Catalog No. |
适用导线 Conductor |

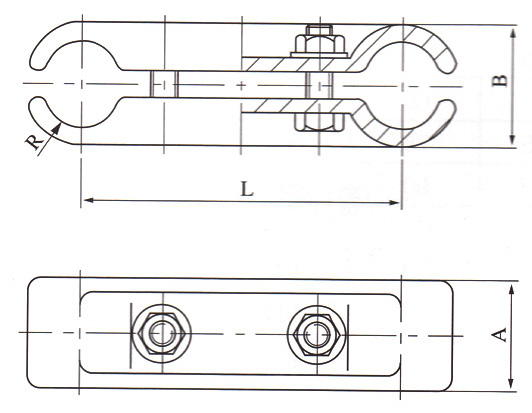

主要尺寸Dimensions(mm) |
参考重量 Weight （kg） |
|||
| A | B | L | R | |||
| MRJ-600K/120 | LGKK-600 | 50 | 68 | 120 | 26 | 0.7 |
| MRJ-600K/200 | LGKK-600 | 60 | 70 | 200 | 26 | 2.2 |
| MRJ-600K/400 | LGKK-600 | 60 | 70 | 400 | 26 | 2.5 |
| MRJ-600K/450 | LGKK-600 | 60 | 70 | 450 | 26 | 3.3 |
| MRJ-900K/120 | LGKK-900 | 50 | 68 | 120 | 26 | 0.7 |
| MRJ-900K/200 | LGKK-900 | 60 | 70 | 200 | 26 | 2.2 |
| MRJ-900K/400 | LGKK-900 | 60 | 70 | 400 | 26 | 2.5 |
| MRJ-900K/450 | LGKK-900 | 60 | 70 | 450 | 26 | 3.3 |
| MRJ-140K/400 | LGKK-1400 | 70 | 83 | 400 | 29 | 3.5 |
| MRJ-1400K/120 | LGJQT-1400 | 50 | 68 | 120 | 26 | 0.7 |
| MRJ-1400K/200 | LGJQT-1400 | 60 | 70 | 200 | 26 | 2.2 |
| MRJ-1400K/400 | LGJQT-1400 | 60 | 70 | 400 | 26 | 2.5 |
| MRJ-1400K/450 | LGJQT-1400 | 60 | 70 | 450 | 26 | 3.3 |
| MRJ-1440N/200 | MAHLGJQ-1400 | 60 | 70 | 200 | 26 | 2.2 |
| MRJ-1440N/400 | NAHLGJQ-1400 | 60 | 70 | 400 | 26 | 2.5 |
线夹本体为铝合金件，其余为热镀锌钢制件
