户外跌落式熔断器系列

户外跌落式熔断器系列

    我要分享:
10KV-15KV

型号
Type
额定电压
Rated
voltage
(KV)
额定电流
Rated
Current
(A)
开断电流
Breaking
Current
(A)
冲出电压
Impulse
voltage
(BIL)
工作耐压
Power-
frequency
withstand
voltage
爬距
Leakage
distance
(MM)
重量
Weight
(KG)
外型尺寸
Dimensions
(CM)

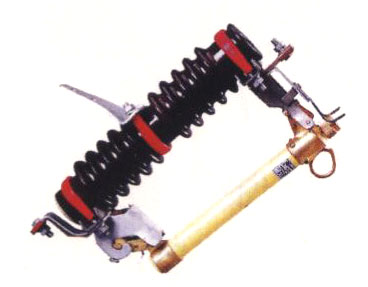

RW3 10 100 6300 100 42 230 6.2 48x27x12
RW3 10 200 8000 100 42 230 6.2


10KV-15KV
型号
Type
额定电压
Rated
voltage
(KV)
额定电流
Rated
Current
(A)
开断电流
Breaking
Current
(A)
冲出电压
Impulse
voltage
(BIL)
工作耐压
Power-
frequency
withstand
voltage
爬距
Leakage
distance
(MM)
重量
Weight
(KG)
外型尺寸
Dimensions
(CM)

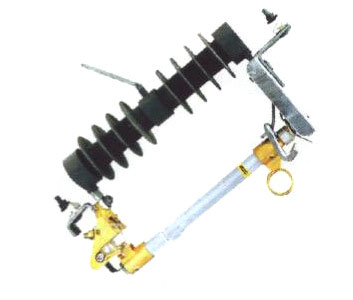

RW10-10F 12 100 6300 110 42 260 7.5 53x32x12
RW10-10F 12 200 8000 110 42 260 7.5


10KV-15KV
型号
Type
额定电压
Rated
voltage
(KV)
额定电流
Rated
Current
(A)
开断电流
Breaking
Current
(A)
冲出电压
Impulse
voltage
(BIL)
工作耐压
Power-
frequency
withstand
voltage
爬距
Leakage
distance
(MM)
重量
Weight
(KG)
外型尺寸
Dimensions
(CM)

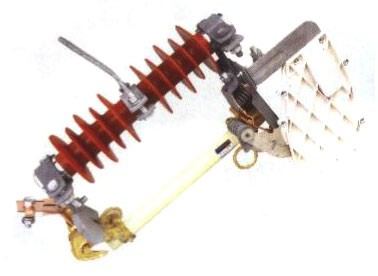

RW7 10 100 6300 110 42 230 6.2 48x27x12
RW7 10 200 8000 110 42 230 6.2


10KV-15KV
型号
Type
额定电压
Rated
voltage
(KV)
额定电流
Rated
Current
(A)
开断电流
Breaking
Current
(A)
冲出电压
Impulse
voltage
(BIL)
工作耐压
Power-
frequency
withstand
voltage
爬距
Leakage
distance
(MM)
重量
Weight
(KG)
外型尺寸
Dimensions
(CM)

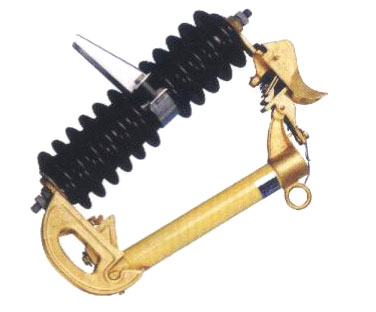

RW11 12 100 6300 110 42 260 7.5 53x32x12
RW11 12 200 8000 110 42 260 7.5


10KV-15KV
型号
Type
额定电压
Rated
voltage
(KV)
额定电流
Rated
Current
(A)
开断电流
Breaking
Current
(A)
冲出电压
Impulse
voltage
(BIL)
工作耐压
Power-
frequency
withstand
voltage
爬距
Leakage
distance
(MM)

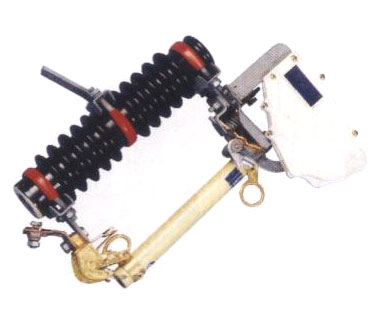

HRW11-10 12 100 6300 100 42 230
HRW11-10 12 200 8000 110 42 230
10KV-15KV
型号
Type
额定电压
Rated
voltage
(KV)
额定电流
Rated
Current
(A)
开断电流
Breaking
Current
(A)
冲出电压
Impulse
voltage
(BIL)
工作耐压
Power-
frequency
withstand
voltage
爬距
Leakage
distance
(MM)
重量
Weight
(KG)
外型尺寸
Dimensions
(CM)

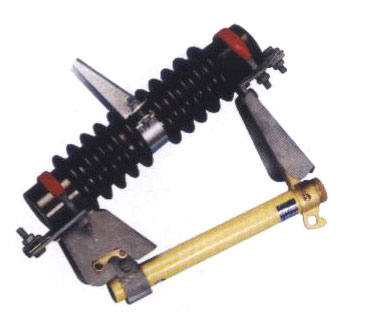

HRW3-10 12 100 6300 110 42 380 8.8 61x13x42
HRW3-10 12 200 8000 110 42 380 8.8


10KV-15KV
型号
Type
额定电压
Rated
voltage
(KV)
额定电流
Rated
Current
(A)
开断电流
Breaking
Current
(A)
冲出电压
Impulse
voltage
(BIL)
工作耐压
Power-
frequency
withstand
voltage
爬距
Leakage
distance
(MM)
重量
Weight
(KG)
外型尺寸
Dimensions
(CM)

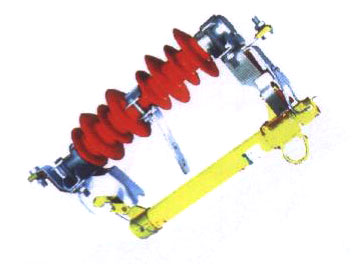

HRW10-10F 12 100 6300 110 42 230 7.8 48x12x31
HRW10-10F 12 200 8000 110 42 230 7.8


10KV-15KV
型号
Type
额定电压
Rated
voltage
(KV)
额定电流
Rated
Current
(A)
开断电流
Breaking
Current
(A)
冲出电压
Impulse
voltage
(BIL)
工作耐压
Power-
frequency
withstand
voltage
爬距
Leakage
distance
(MM)
重量
Weight
(KG)
外型尺寸
Dimensions
(CM)
HRW12-10 12 100 1000 110 42 250 7.3 38.5x34.5x11
HRW12-10 12 200 1200 110 42 250 7.3
