型号 Catalog No. |
适用钢绞线 S uitable Steel Wire |

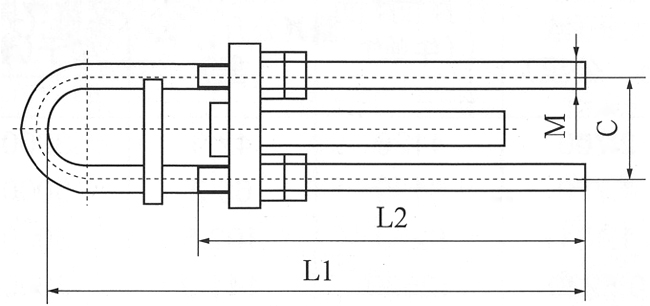

主要尺寸Dimensions(mm) |
标称破坏荷重 Rated failure load(kN) |
重量 Weight (kg) |
|||
| C | M | L1 | L1 | ||||
| NLY-50 | 1*7-9.0-140-GB1200-75 | 72 | 18 | 320 | 230 | 67.5 | 3.4 |
| NLY-120 | 1*19-14.0-155-GB1200-75 | 94 | 24 | 580 | 400 | 196.5 | 7.9 |
| NLY-135 | 1*19-15.0-155-GB1200-75 | 94 | 24 | 580 | 400 | 196.5 | 8.4 |
| NLY-150 | 1*19-16.0-155-GB1200-75 | 104 | 24 | 580 | 400 | 245.0 | 12.2 |
| NLY-165 | 1*37-16.80-155-GB1200-75 | 104 | 27 | 588 | 400 | 255.0 | 12.5 |
| NLY-180 | 1*37-17.5-155-GB1200-75 | 114 | 30 | 640 | 450 | 300.0 | 13.6 |
| NLY-195 | 1*37-18.2-155-GB1200-75 | 114 | 30 | 640 | 460 | 300.0 | 14.5 |
| NLY-265 | 1*37-21.0-1570-GB1200-75 | 128 | 36 | 670 | 440 | 367.0 | 26.6 |
| NLY-100E | 1*19-13.0-1570-GB1200-88 | 84 | 22 | 490 | 300 | 151.0 | 6.3 |
| NLY-125E | 1*19-14.5-1570-GB1200-88 | 94 | 24 | 580 | 380 | 188.0 | 9.1 |
| NLY-150E | 1*19-16.0-1570-GB1200-88 | 104 | 27 | 610 | 400 | 228.0 | 12.0 |
| NLY-180E | 1*19-17.5-1570-GB1200-88 | 114 | 30 | 640 | 420 | 273.0 | 15.6 |
| NLY-240E | 1*19-20.0-1570-GB1200-88 | 128 | 36 | 670 | 440 | 357.0 | 22.6 |
