型号 Catalog No. |

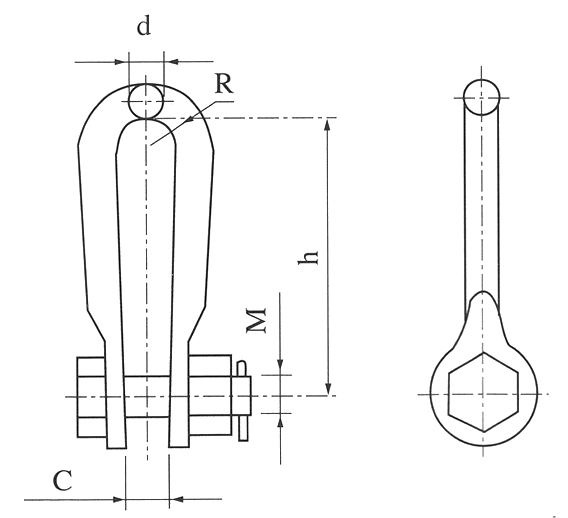

主要尺寸Dimensions(mm) |
标称破坏荷重 Rated failure load(kN) |
重量 Weight (kg) |
||||
| C | R | M | h | d | |||
| UL-7 | 20 | 15 | 16 | 120 | 16 | 70 | 0.65 |
| UL-10 | 22 | 17 | 18 | 140 | 18 | 100 | 0.92 |
| UL-12 | 24 | 22 | 20 | 140 | 18 | 120 | 1.20 |
| UL-16 | 26 | 19 | 24 | 140 | 22 | 160 | 1.64 |
| UL-20 | 30 | 22 | 27 | 160 | 24 | 200 | 2.90 |
| UL-25 | 34 | 25 | 30 | 170 | 26 | 250 | 3.00 |
| UL-30 | 38 | 20 | 36 | 170 | 30 | 300 | 3.50 |
