型号 Catalog No. |
适用导线 Suitable Conductor |

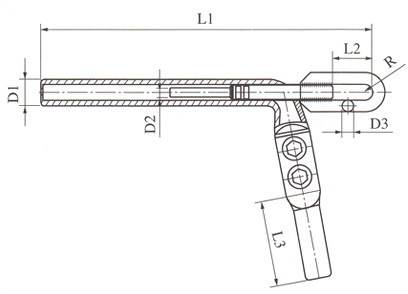

主要尺寸Dimensions(mm) |
握力 Slip Strength(kN) |
重量 Weight (kg) |
||||||
| D1 | D2 | D3 | L1 | L2 | L3 | R | ||||
| NY-70/40BG | ACSR/AS-70/40 | 34 | 16 | 16 | 480 | 50 | 180 | 9 | 57.8 | 0.4 |
| NY-80/47BG | ACSR/AS-80/47 | 36 | 18 | 16 | 485 | 70 | 230 | 10.0 | 64.6 | 2.6 |
| NY-95/55BG | ACSR/AS-95/55 | 36 | 22 | 18 | 486 | 65 | 200 | 11.0 | 74.0 | 2.9 |
| NY-185/30BG | ACSR/AS-185-30 | 36 | 16 | 16 | 550 | 55 | 220 | 9.0 | 62.9 | 2.9 |
| NY-240/40BS | ACSR/AS-240/40 | 38 | 18 | 18 | 595 | 65 | 240 | 12.0 | 81.6 | 3.3 |
| NY-300/25BG | ACSR/AS-300/25 | 42 | 16 | 18 | 560 | 55 | 255 | 11.5 | 74.4 | 3.6 |
| NY-300/40BG | ACSR/AS-300/40 | 42 | 18 | 18 | 615 | 70 | 270 | 13.0 | 90.0 | 3.8 |
| NY-300/50BG | ACSR/AS-300/50 | 42 | 18 | 18 | 620 | 70 | 265 | 13.0 | 101.0 | 4.1 |
| NY-300/70BG | ACSR/AS-300/70 | 42 | 22 | 20 | 640 | 70 | 260 | 13.0 | 117.8 | 4.4 |
| NY-400/35BG | ACSR/AS-400/35 | 48 | 18 | 20 | 635 | 65 | 280 | 13.0 | 99.0 | 5.2 |
| NY-400/50BG | ACSR/AS-400/50 | 48 | 20 | 20 | 645 | 65 | 280 | 13.0 | 117.0 | 5.2 |
