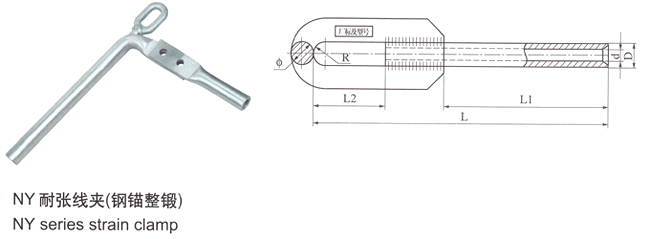

1)钢绞线用耐张线夹(焊接型)
热镀锌钢制件
热镀锌钢制件
|
型号 Catalog No. |
适用钢铰线外径 Dia.of steelwire |
主要尺寸Dimensions(mm) |
标称破坏荷重 Rated Failure load(kN) |
||||||
| L | L1 | L2 | D | d | Ф | R | |||
| NY-35G | 7.8 | 215 | 115 | 55 | 16 | 8.4 | 16 | 8 | 45 |
| NY-50G | 9.0 | 220 | 130 | 55 | 18 | 9.7 | 16 | 9 | 60 |
| NY-55G | 9.6 | 230 | 140 | 55 | 20 | 10.2 | 16 | 10 | 70 |
| NY-70G | 11.0 | 255 | 155 | 60 | 22 | 11.7 | 18 | 11 | 88 |
| NY-80G | 11.5 | 275 | 175 | 55 | 24 | 12.2 | 18 | 12 | 100 |
| NY-100G | 13.0 | 295 | 185 | 70 | 26 | 13.5 | 20 | 13 | 123 |
| NY-120G | 14.0 | 315 | 195 | 75 | 28 | 14.7 | 22 | 14 | 143 |
| NY-135G | 15.0 | 340 | 215 | 75 | 30 | 15.7 | 22 | 15 | 164 |
| NY-150G | 16.0 | 380 | 230 | 90 | 32 | 16.7 | 24 | 16 | 187 |

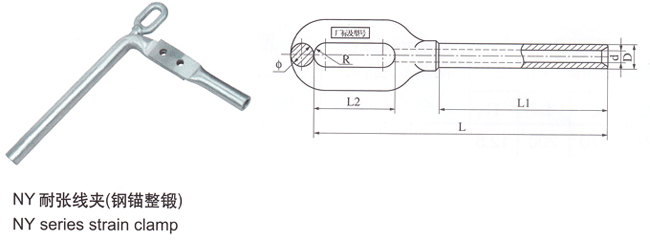

2)钢绞线用耐张线夹(整锻型)
|
型号 Catalog No. |
适用钢铰线外径 Dia.of steelwire |
主要尺寸Dimensions(mm) |
标称破坏荷重 Rated Failure load(kN) |
||||||
| L | L1 | L2 | D | d | Ф | R | |||
| NY-35G | 7.8 | 200 | 115 | 55 | 16 | 8.4 | 16 | 8 | 45 |
| NY-50G | 9.0 | 215 | 130 | 55 | 18 | 9.7 | 16 | 9 | 60 |
| NY-55G | 9.6 | 225 | 140 | 55 | 20 | 10.2 | 16 | 10 | 70 |
| NY-70G | 11.0 | 245 | 155 | 60 | 22 | 11.7 | 18 | 11 | 88 |
| NY-80G | 11.5 | 260 | 175 | 55 | 24 | 12.2 | 18 | 11 | 100 |
| NY-100G | 13.0 | 290 | 185 | 70 | 26 | 13.5 | 20 | 13 | 123 |
| NY-120G | 14.0 | 310 | 195 | 75 | 28 | 14.7 | 22 | 12 | 143 |
| NY-135G | 15.0 | 335 | 215 | 75 | 30 | 15.7 | 22 | 13 | 164 |
| NY-150G | 16.0 | 365 | 230 | 90 | 32 | 16.7 | 24 | 14 | 187 |
