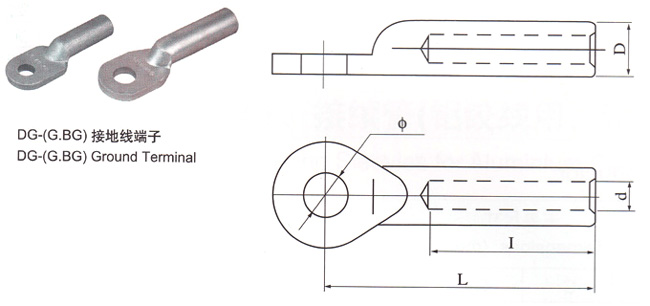

型号 Catalog No. |
主要尺寸Dimensions(mm) |
重量 |
||||
| D | d | I | L | Φ | ||
| DG-35BG | 18 | 9.0 | 50 | 100 | 18 | 0.4 |
| DG-50BG | 18 | 10.5 | 50 | 100 | 18 | 0.4 |
| DG-55BG | 18 | 11 | 60 | 100 | 18 | 0.4 |
| DG-70BG | 20 | 12.5 | 60 | 100 | 20 | 0.7 |
| DG-80BG | 20 | 13 | 60 | 100 | 20 | 0.6 |
| DG-100BG | 24 | 14.5 | 80 | 130 | 20 | 0.7 |
| DG-120BG | 24 | 16 | 80 | 130 | 22 | 0.6 |
| DG-150BG | 28 | 17.5 | 100 | 160 | 22 | 1.3 |
| DG-185BG | 28 | 19 | 100 | 160 | 22 | 1.2 |
|

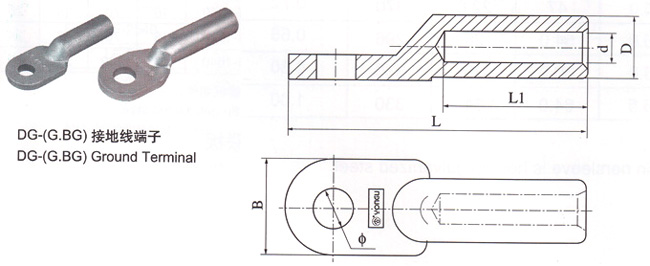

型号 Catalog No. |
主要尺寸Dimensions(mm) | |||||
| Φ | D | d | L | L1 | B | |
| DG-70G | 17 | 26 | 11.2 | 125 | 60 | 40 |
| DG-80G | 17 | 26 | 12.1 | 125 | 60 | 40 |
| DG-100G | 17 | 28 | 13.7 | 135 | 70 | 40 |
| DG-120G | 17 | 28 | 15.2 | 145 | 800 | 40 |
| DG-150G | 17 | 32 | 16.7 | 155 | 90 | 40 |
| DG-185G | 17 | 38 | 19.3 | 170 | 105 | 40 |
