型号 Catalog No. |
适用导线 Suitable Conducto |

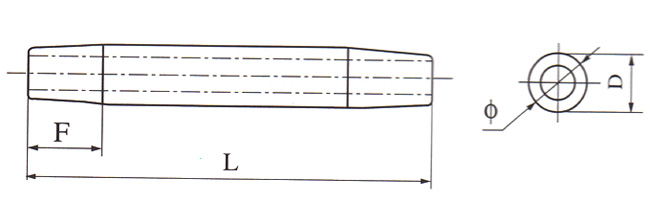

主要尺寸Dimensions(mm) |
握力 Slip Strength ≥(kN) |
重量 Weight (kg) |
|||
| D | F | Φ | L | ||||
| JY-150L | LJ-150 | 30 | 20 | 17.0 | 280 | 22 | 0.36 |
| JY-185L | LJ-185 | 32 | 20 | 19.0 | 310 | 27 | 0.44 |
| JY-210L | LJ-210 | 34 | 20 | 20.0 | 330 | 31 | 0.60 |
| JY-240L | LJ-240 | 36 | 20 | 21.5 | 350 | 34 | 0.75 |
| JY-300L | LJ-300 | 40 | 25 | 24.0 | 390 | 45 | 0.95 |
| JY-400L | LJ-400 | 45 | 25 | 27.5 | 450 | 58 | 1.50 |
| JY-500L | LY-500 | 52 | 30 | 30.5 | 510 | 73 | 2.00 |
| JY-630L | LY-630 | 60 | 35 | 34.0 | 570 | 87 | 2.80 |
| JY-800L | LY-800 | 65 | 40 | 38.5 | 650 | 110 | 4.80 |
