型号 Catalog No. |
适用导线 Suitable Conductor |

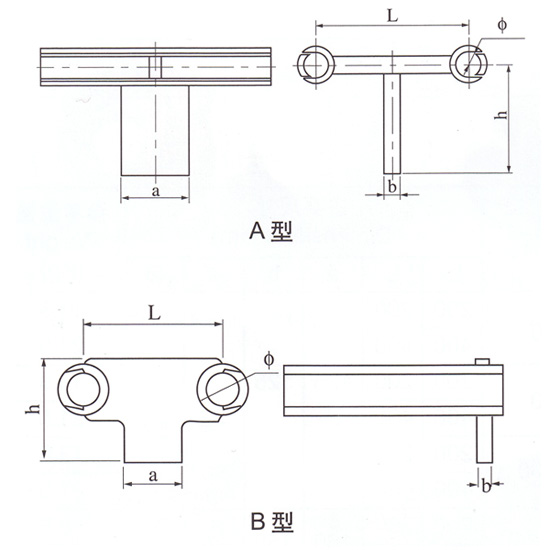

主要尺寸Dimensions(mm) | |||||
| 型号Catalog No. | 外径Dia | Φ | a | h |
b |
L | |
| TYS-2*150/120 | LGJ-150/25 | 17.10 | 18.4 | 100 | 125 | 12 | 120 |
| TYS-2*185/120 | LGJ-185/45 | 19.60 | 21.0 | 100 | 125 | 12 | 120 |
| TYS-2*240/120 | LGJ-240/30 | 21.60 | 23.0 | 100 | 125 | 12 | 120 |
| TYS-2*300/120 | LGJ-300/40 | 23.94 | 25.5 | 100 | 125 | 12 | 120 |
| TYS-2*400/120 | LGJ-400/50 | 27.63 | 29.0 | 125 | 145 | 12 | 120 |
| TYS-2*500/120 | LGJ-500/45 | 30.00 | 32.0 | 125 | 145 | 16 | 120 |
| TYS-2*630/120 | LGJ-630/45 | 33.60 | 36.0 | 150 | 175 | 16 | 120 |
| TYS-2*240/200 | LGJ-240/30 | 21.60 | 23.0 | 100 | 125 | 12 | 200 |
| TYS-2*300/200 | LGJ-300/40 | 23.94 | 25.5 | 100 | 125 | 12 | 200 |
| TYS-2*400/200 | LGJ-400/50 | 27.63 | 29.0 | 125 | 145 | 12 | 200 |
| TYS-2*500/200 | LGJ-500/45 | 30.00 | 32.0 | 125 | 145 | 16 | 200 |
| TYS-2*630/200 | LGJ-630/45 | 33.60 | 36.0 | 150 | 175 | 16 | 200 |
| TYS-2*240/400 | LGJ-240/30 | 21.60 | 23.0 | 100 | 125 | 12 | 400 |
| TYS-2*300/400 | LGJ-300/40 | 23.94 | 25.5 | 100 | 125 | 12 | 400 |
| TYS-2*400/400 | LGJ-400/50 | 27.63 | 29.0 | 125 | 145 | 12 | 400 |
| TYS-2*500/400 | LGJ-500/45 | 30.00 | 32.0 | 125 | 145 | 16 | 400 |
| TYS-2*630/400 | LGJ-630/45 | 33.60 | 36.0 | 150 | 175 | 16 | 400 |
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
