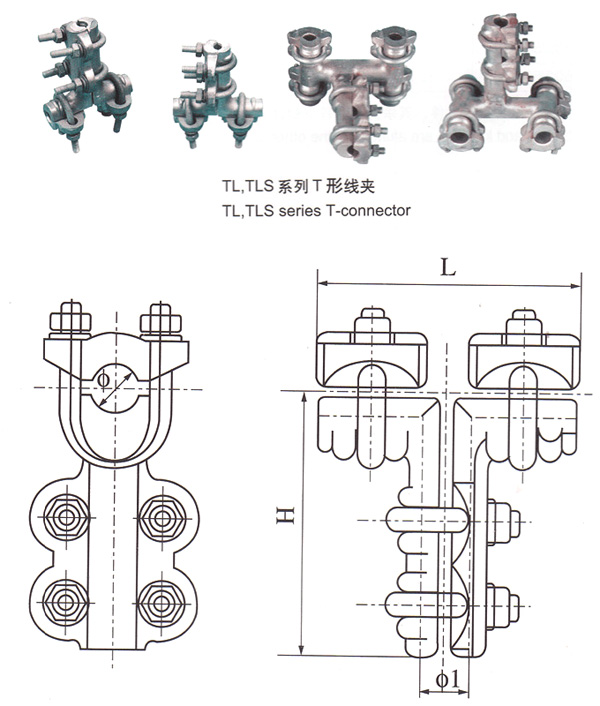

型号 Catalog No. |
适用导线外径(MM) Suitable Conductor |
主要尺寸Dimensions(mm) |
参考重量 Weight （kg） |
||||
| 母线Bus |
引下线 Conductor |
Φ1 | Φ2 | H | L | ||
| TL-11 | 7.5-9.6 | 7.5-9.6 | 10 | 10 | 118 | 0.71 | |
| TL-21 | 10.8-14.0 | 7.5-9.6 | 14 | 10 | 118 | 0.78 | |
| TL-22 | 10.8-14.0 | 10.8-14.0 | 14 | 120 | 0.79 | ||
| TL-31 | 14.5-17.5 | 7.5-9.6 | 18 | 10 | 118 | 1.07 | |
| TL-32 | 14.5-17.5 | 10.8-14.0 | 14 | 120 | 1.06 | ||
| TL-33 | 14.5-17.5 | 14.5-17. | 18 | 120 | 1.06 | ||
| TL-41 | 18.1-22.0 | 7.5-9.6 | 23 | 10 | 118 | 1.13 | |
| TL-42 | 18.1-22.0 | 10.8-14.0 | 14 | 120 | 1.13 | ||
| TL-43 | 18.1-22.0 | 14.5-17. | 18 | 120 | 1.12 | ||
| TL-44 | 18.1-22.0 | 18.1-22.0 | 22 | 120 | 1.17 | ||
| TL-51 | 22.4-25.2 | 7.5-9.6 | 26 | 10 | 118 | 120 | 2.6 |
| TL-52 | 22.4-25.2 | 10.8-14.0 | 26 | 14 | 118 | 120 | 2.5 |
| TL-53 | 22.4-25.2 | 14.5-17. | 26 | 18 | 118 | 120 | 2.5 |
| TL-54 | 22.4-25.2 | 18.1-22.0 | 26 | 23 | 118 | 120 | 2.5 |
| TL-55 | 22.4-25.2 | 22.4-25.2 | 26 | 26 | 118 | 120 | 2.5 |
| TL-500/500 | 30.2 | 30.2 | 31 | 31 | 199 | 146 | 3.6 |
| TL-600/600 | 32.5 | 32.5 | 33 | 33 | 3.6 | ||
线夹本体为铝合金件，其余为热镀锌钢制件。
