型号 Catalog No. |
适用导线 Suitable Conductor |

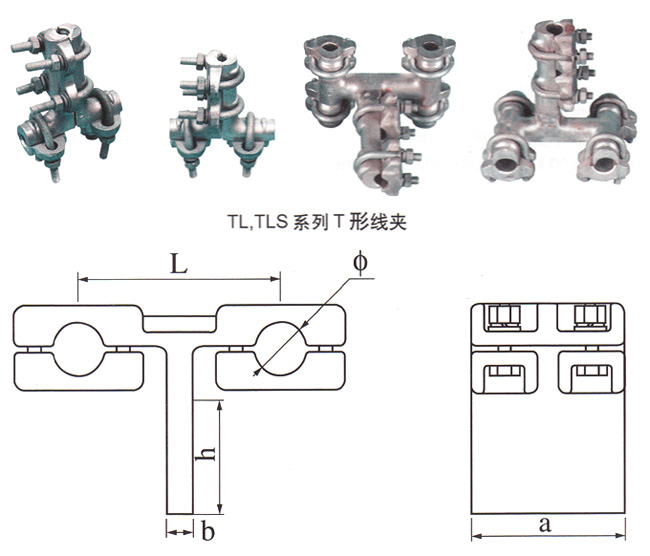

主要尺寸Dimensions(mm) |
参考重量 Weight （kg） |
||||
| Φ | a | h | b | L | |||
| TLS-240/120 | LGJ-240 | 22 | 50 | 80 | 14 | 120 | 3.8 |
| TLS-300/120 | LGJ-300 | 25 | 63 | 100 | 16 | 120 | 4.1 |
| TLS-400/120 | LGJ-400 | 28 | 63 | 100 | 16 | 120 | 4.2 |
| TLS-500/120 | LGJ-500 | 31 | 80 | 100 | 18 | 120 | 4.3 |
| TLS-630/120 | LGJ-630 | 35 | 100 | 100 | 18 | 120 | 4.5 |
| TLS-800/120 | LGJ-800 | 39 | 125 | 125 | 20 | 120 | 4.8 |
| TLS-400N/120 | NAHLGJQ-400 | 29 | 125 | 125 | 20 | 120 | 5.0 |
| TLS-600K/120 | LGKK-600 | 52 | 125 | 125 | 20 | 120 | 5.5 |
| TLS-900K/120 | LGKK-900 | 50 | 125 | 125 | 20 | 120 | 5.4 |
| TLS-1400/120 | LGJ-1400 | 52 | 125 | 125 | 20 | 120 | 5.5 |
| TLS-240/200 | LGJ-240 | 22 | 50 | 80 | 14 | 200 | 5.0 |
| TLS-300/200 | LGJ-300 | 25 | 63 | 100 | 16 | 200 | 5.3 |
| TLS-400/200 | LGJ-400 | 28 | 63 | 100 | 16 | 200 | 5.4 |
| TLS-500/200 | LGJ-500 | 31 | 80 | 100 | 18 | 200 | 5.5 |
| TLS-630/200 | LGJ-630 | 35 | 100 | 100 | 18 | 200 | 5.7 |
| TLS-800/200 | LGJ-800 | 39 | 125 | 125 | 20 | 200 | 6.0 |
| TLS-400N/200 | NAHLGJQ-400 | 29 | 125 | 125 | 20 | 200 | 6.2 |
| TLS-630N/200 | NAHLGJQ-630 | 35 | 150 | 150 | 24 | 200 | 8.8 |
| TLS-600K/200 | LGKK-600 | 52 | 125 | 125 | 20 | 200 | 6.8 |
| TLS-900K/200 | LGKK-900 | 50 | 125 | 125 | 20 | 200 | 6.6 |
| TLS-1000N/200 | NAHLGJQ-1000 | 43 | 150 | 150 | 24 | 200 | 6.2 |
| TLS-1400/200 | LGJ-1400 | 52 | 125 | 125 | 20 | 200 | 6.8 |
| TLS-1440N/200 | NAHLGJQ-1440 | 52 | 150 | 150 | 24 | 200 | 6.5 |
| TLS-240/400 | LGJ-240 | 22 | 50 | 80 | 14 | 400 | 6.5 |
| TLS-300/400 | LGJ-300 | 25 | 63 | 100 | 16 | 400 | 6.8 |
| TLS-400/400 | LGJ-400 | 28 | 63 | 100 | 16 | 400 | 6.9 |
| TLS-400N/400 | NAHLGJQ-500 | 29 | 125 | 125 | 20 | 400 | 7.7 |
| TLS-500/400 | LGJ-500 | 31 | 80 | 100 | 18 | 400 | 7.1 |
| TLS-630/400 | LGJ-630 | 35 | 100 | 100 | 18 | 400 | 7.3 |
| TLS-800/400 | LGJ-800 | 39 | 125 | 125 | 20 | 400 | 7.5 |
| TLS-600K/400 | LGKK-600 | 52 | 125 | 125 | 20 | 400 | 7.2 |
| TLS-900K/400 | LGKK-900 | 50 | 125 | 125 | 20 | 400 | 7.3 |
| TLS-1400/400 | LGJ-1400 | 52 | 125 | 125 | 20 | 400 | 7.2 |
| TLS-1440N/400 | NAHLGJQ-1440 | 52 | 150 | 150 | 24 | 400 | 7.5 |
主体为铝制件，其余为热镀锌钢制件。
