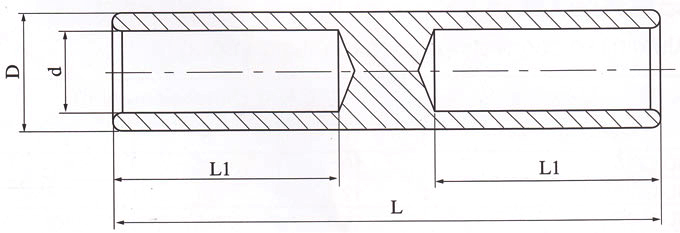

1)堵油铝连接管
2)堵油铝连接管;
| 型号Catalog No. | 主要尺寸Dimensiongs(mm) | |||
| D | d | L1 | L | |
| GL-16 | 10 | 5.5 | 30 | 70 |
| GL-25 | 12 | 7 | 32 | 75 |
| GL-35 | 14 | 8.5 | 37 | 85 |
| GL-50 | 16 | 9.7 | 42 | 95 |
| GL-70 | 18 | 11.5 | 47 | 105 |
| GL-95 | 21 | 13.5 | 50 | 110 |
| GL-120 | 23 | 15 | 52 | 115 |
| GL-150 | 25 | 16.5 | 55 | 120 |
| GL-185 | 27 | 18.5 | 57 | 125 |
| GL-240 | 30 | 21 | 60 | 130 |
| GL-300 | 34 | 23 | 64 | 140 |
| GL-400 | 38 | 26.5 | 69 | 150 |

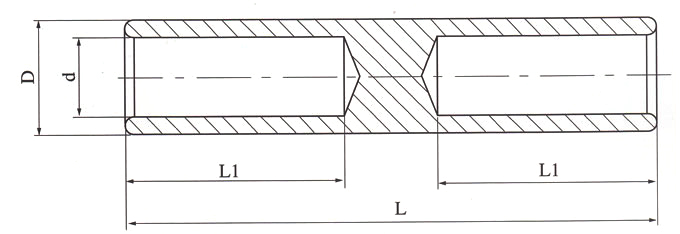

2)堵油铝连接管;
| 型号Catalog No. | 主要尺寸Dimensiongs(mm) | |||
| D | d | L1 | L | |
| GT-16 | 10 | 6 | 30 | 65 |
| GT-25 | 11 | 7 | 32 | 70 |
| GT-35 | 12 | 8.5 | 34 | 75 |
| GT-50 | 14 | 9.7 | 35 | 80 |
| GT-70 | 16 | 11.5 | 41 | 90 |
| GT-95 | 18 | 13.5 | 43 | 95 |
| GT-120 | 20 | 15 | 46 | 100 |
| GT-150 | 22 | 16.5 | 48 | 105 |
| GT-185 | 25 | 18.5 | 50 | 110 |
| GT-240 | 27 | 21 | 55 | 120 |
| GT-300 | 30 | 23 | 60 | 130 |
| GT-400 | 34 | 26 | 64 | 140 |
| GT-500 | 38 | 29 | 70 | 155 |
