1)铜铝接线端子
2)铜铝接线端子(出口型)
3)铜铝接线端子(爆炸焊)
采用爆炸焊工艺制造。Clamp are made of aluminium, the other parts are steel and hot-dip galvanized.
4）铜铝接线端子（双孔型） Cu-Al terminal (dual hole type)

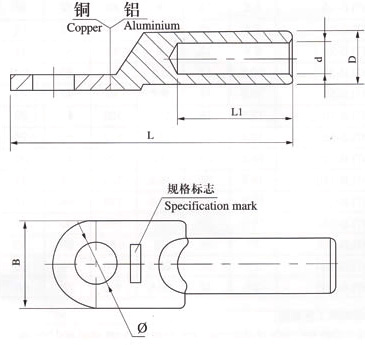

| 型号Catalog No. | 主要尺寸Dimensions(mm) | |||||
| Ф | D | d | L | L1 | B | |
|
DTL-1-10 |
8.5 | 10 | 5 | 65 | 32 | 16 |
| DTL-1-16 | 8.5 | 10 | 5.5 | 70 | 32 | 16 |
| DTL-1-25 | 8.5 | 12 | 7 | 75 | 34 | 18 |
| DTL-1-35 | 10.5 | 14 | 8.5 | 85 | 40 | 20.5 |
| DTL-1-50 | 10.5 | 16 | 9.7 | 90 | 42 | 23 |
| DTL-1-70 | 12.5 | 18 | 11.5 | 102 | 47 | 26 |
| DTL-1-95 | 12.5 | 21 | 13.5 | 112 | 50 | 28 |
| DTL-1-120 | 14.5 | 23 | 15 | 120 | 53 | 30 |
| DTL-1-150 | 14.5 | 25 | 16.5 | 126 | 55 | 34 |
| DTL-1-185 | 16.5 | 27 | 18.5 | 133 | 58 | 37 |
| DTL-1-240 | 16.5 | 30 | 21 | 140 | 60 | 40 |
| DTL-1-300 | 21 | 34 | 23 | 165 | 65 | 50 |
| DTL-1-400 | 21 | 38 | 26.5 | 170 | 70 | 50 |
| DTL-1-500 | 21 | 42 | 29.5 | 190 | 75 | 60 |
| DTL-1-630 | - | 54 | 34 | 225 | 80 | 80 |
| DTL-1-800 | - | 60 | 38 | 270 | 90 | 100 |
2)铜铝接线端子(出口型)
| 型号Catalog No. | 主要尺寸Dimensions(mm) | ||||
| Ф | D | d | L | L1 | |
|
DTL-2-16 |
13 | 16 | 5.5 | 90 | 42 |
|
DTL-2-25 |
13 | 16 | 6.5 | 90 | 42 |
|
DTL-2-35 |
13 | 16 | 8 | 90 | 42 |
|
DTL-2-50 |
13 | 20 | 9 | 90 | 43 |
|
DTL-2-70 |
13 | 20 | 11 | 90 | 43 |
|
DTL-2-95 |
13 | 20 | 12.5 | 90 | 43 |
|
DTL-2-120 |
13 | 25 | 13.7 | 115 | 60 |
|
DTL-2-150 |
13 | 25 | 15.5 | 118 | 60 |
|
DTL-2-185 |
13 | 32 | 17.5 | 122 | 60 |
|
DTL-2-240 |
13 | 32 | 19.5 | 122 | 60 |
|
DTL-2-300 |
13 | 34 | 22.5 | 125 | 62 |
3)铜铝接线端子(爆炸焊)
| 型号Catalog No. | 主要尺寸Dimensions(mm) | |||||
| Ф | D | d | L | L1 | B | |
|
DTLB-10 |
8.5 | 10 | 5 | 65 | 32 | 16 |
| DTLB-16 | 8.5 | 10 | 5.5 | 70 | 32 | 16 |
| DTLB-25 | 8.5 | 12 | 7 | 75 | 34 | 18 |
| DTLB-35 | 10.5 | 14 | 8.5 | 85 | 40 | 20.5 |
| DTLB-50 | 10.5 | 16 | 9.7 | 90 | 42 | 23 |
| DTLB-70 | 12.5 | 18 | 11.5 | 102 | 47 | 26 |
| DTLB-95 | 12.5 | 21 | 13.5 | 112 | 50 | 28 |
| DTLB-120 | 14.5 | 23 | 15 | 120 | 53 | 30 |
| DTLB-150 | 14.5 | 25 | 16.5 | 126 | 55 | 34 |
| DTLB-185 | 16.5 | 27 | 18.5 | 133 | 58 | 37 |
| DTLB-240 | 16.5 | 30 | 21 | 140 | 60 | 40 |
| DTLB-300 | 21 | 34 | 23 | 165 | 65 | 50 |
| DTLB-400 | 21 | 38 | 26.5 | 170 | 70 | 50 |
| DTLB-500 | 21 | 42 | 29.5 | 190 | 75 | 60 |
采用爆炸焊工艺制造。Clamp are made of aluminium, the other parts are steel and hot-dip galvanized.
4）铜铝接线端子（双孔型） Cu-Al terminal (dual hole type)
| 型号Catalog No. | 主要尺寸Dimensions(mm) | ||||||
| Ф | D | d | L | L1 | B | A | |
|
DTL-25S |
8.5 | 12 | 7 | 95 | 34 | 20 | 3.2 |
|
DTL-35S |
8.5 | 14 | 8.5 | 107 | 40 | 23 | 3.6 |
|
DTL-50S |
8.5 | 16 | 9.7 | 115 | 42 | 23 | 4 |
|
DTL-70S |
10.5 | 18 | 11.5 | 128 | 47 | 28 | 4.5 |
|
DTL-95S |
10.5 | 21 | 13.5 | 138 | 50 | 28 | 4.8 |
|
DTL-120S |
12.5 | 23 | 15 | 152 | 53 | 34 | 5.5 |
|
DTL-150S |
12.5 | 25 | 16.5 | 155 | 55 | 34 | 6 |
|
DTL-185S |
12.5 | 27 | 18.5 | 168 | 58 | 40 | 6.7 |
|
DTL-240S |
12.5 | 30 | 21 | 172 | 60 | 40 | 7 |
|
DTL-300S |
12.5 | 34 | 23 | 195 | 65 | 50 | 8.5 |
