型号 Catalog No. |
适用导线范围 Applicable Conductor(mm) |

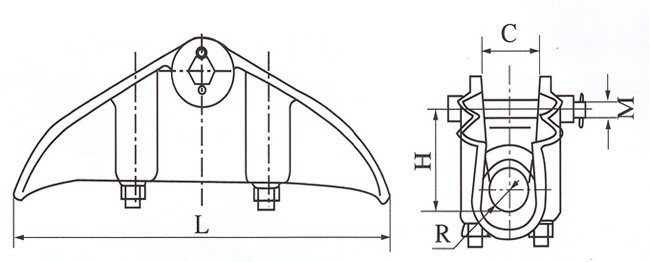

主要尺寸Dimensions(mm) |
标称破坏荷重 Rated Failure load(kN) |
重量 Weight (kg) |
||||
| H | C | M | R | L | ||||
| XGT-1 | 5.0-7.0 | 60 | 18 | 18 | 4.0 | 180 | 40 | 3.3 |
| XGT-2 | 7.1-13.0 | 75 | 18 | 18 | 7.0 | 200 | 40 | 4.9 |
| XGT-3 | 13.1-21.0 | 75 | 27 | 16 | 11.0 | 220 | 40 | 5.6 |
| XGT-4 | 21.1-26.0 | 62 | 27 | 16 | 13.5 | 250 | 60 | 6.5 |
| XGT-5 | 23.0-33.0 | 81 | 38 | 16 | 17.0 | 300 | 60 | 8.7 |
| XGT-6 | 34.0-45.0 | 89 | 46 | 16 | 23.0 | 300 | 60 | 9.8 |
线夹本体和压板为可锻铸铁件，闭口销为不锈钢制件，其余为钢制件、可锻铸铁件和钢制件热镀锌
