| 型号Catalog No. |
适用导线范围 Applicable Conductor(mm) |

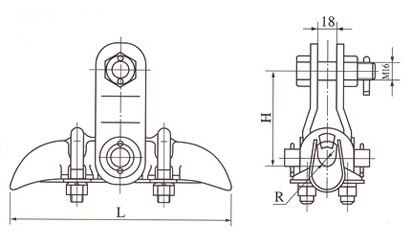

主要尺寸Dimensions(mm) |
标称破坏荷重 Rated Failure load(kN) |
重量 Weight (kg) |
||||
| H | L | R | ||||||
| XGU-1 | 5.0-7.0 | 82 | 180 | 4.0 | 40 | 1.4 | ||
| XGU-2 | 7.1-13.0 | 82 | 200 | 7.0 | 40 | 1.8 | ||
| XGU-3 | 13.1-21.0 | 102 | 220 | 11.0 | 40 | 2.0 | ||
| XGU-4 | 21.1-26.0 | 110 | 250 | 13.5 | 40 | 3.0 | ||
线夹本体和压板为可锻铸铁件，闭口销为不锈钢制件，其余为钢制件、可锻铸铁件和钢制件热镀锌
