| 型号Catalog No. |
适用导线范围 Applicable Conductor(mm) |
主要尺寸Dimensions(mm) |

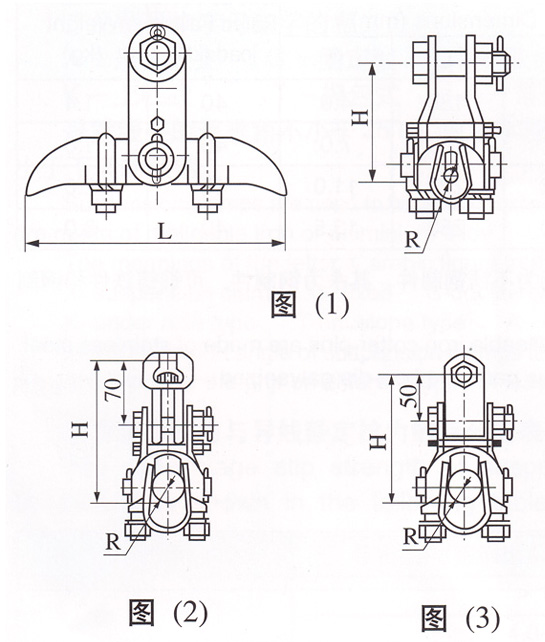

图号 Fig No. |
标称破坏荷重 Rated Failure load(kN) |
重量 Weight (kg) |
||||
| H | L | R | |||||||
| XGU-1F | 5.0-7.0 | 82 | 180 | 4.0 | 1 | 40 | 1.4 | ||
| XGU-2F | 7.1-13.0 | 102 | 200 | 7.0 | 40 | 1.8 | |||
| XGU-3F | 13.1-21.0 | 121 | 220 | 11.0 | 40 | 2.0 | |||
| XGU-4F | 21.1-26.0 | 130 | 250 | 13.5 | 40 | 3.0 | |||
| XGU-5F | 23.0-33.0 | 140 | 300 | 17 | 60 | 4.7 | |||
| XGU-6F | 34.0-45.0 | 155 | 300 | 23 | 60 | 5.1 | |||
| XGU-5AF | 23.0-33.0 | 210 | 300 | 17 | 2 | 60 | 5.7 | ||
| XGU-6AF | 34.0-45.0 | 220 | 300 | 23 | 60 | 6.1 | |||
| XGU-5BF | 23.0-33.0 | 190 | 300 | 17 | 3 | 60 | 5.4 | ||
| XGU-6BF | 34.0-45.0 | 205 | 300 | 23 | 60 | 5.8 | |||
| XGU-7BF | 45.0-48.7 | 310 | 300 | 26 | 60 | 6.4 | |||
线夹本体和压板为可锻铸铁件，闭口销为不锈钢制件，其余为钢制件、可锻铸铁件和钢制件热镀锌
